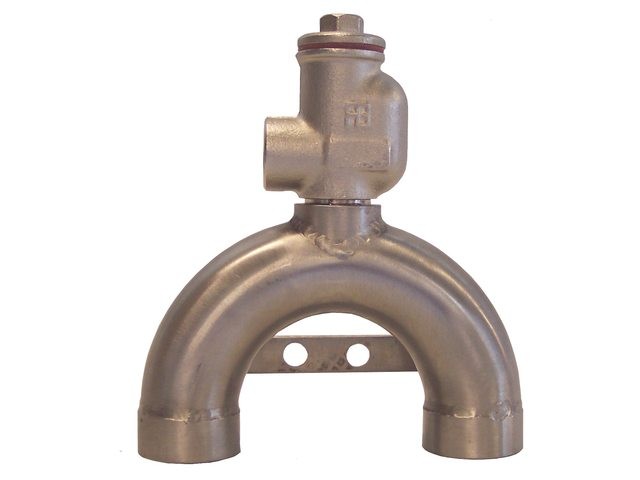

Stainless Steel 316 Combination Air Vent with Integrated 1/2" Brass Non-Return Valve

ID 1374284

$ 130.15

1-2 weeks delivery time

Size:

3/4"
1 1/4"

The Stainless Steel 316 Combination Air Vent with Integrated 1/2" Brass Non-Return Valve is designed to remove trapped air from marine and industrial piping systems. Featuring a Stainless Steel 316 venting bend with BSP connection and a factory-mounted 1/2" brass check valve, it provides reliable venting and backflow protection. Available in 3/4" and 1 1/4" BSP sizes.

Description
Ask a Question

Stainless Steel 316 Combination Air Vent with Integrated 1/2" Brass Non-Return Valve – 3/4" & 1 1/4" BSP

The Stainless Steel 316 Combination Air Vent with Integrated 1/2" Brass Non-Return Valve is designed for marine and industrial piping systems where reliable air release and backflow prevention are required. The assembly consists of a Stainless Steel 316 venting bend with BSP connection and a pre-installed 1/2" brass non-return valve, providing a compact and durable solution for water circulation systems.

Key Features

Stainless Steel 316 venting bend construction
Factory-fitted 1/2" brass non-return valve
BSP threaded connection
Helps eliminate trapped air from pipe systems
Provides protection against backflow
Excellent corrosion resistance for marine environments
Suitable for freshwater and seawater installations

Available Variants

SKU	Description	Connection Size
QVB075	Combination Air Vent with Integrated Check Valve	3/4" BSP
QVB125	Combination Air Vent with Integrated Check Valve	1 1/4" BSP

Technical Specifications

Parameter	Specification
Product Type	Combination Air Vent
Main Material	Stainless Steel 316
Check Valve Material	Brass
Check Valve Size	1/2"
Connection Type	BSP Thread
Available Sizes	3/4", 1 1/4"

Applications

Ideal for marine cooling circuits, water transfer systems, ballast systems, tank installations, and other piping systems where air release and backflow protection are required.
