Cristec DC12-36/15PL is a silent DC-DC converter charger designed for professional and marine use, offering fanless operation, advanced 5-step charging, and compatibility with lead-acid, AGM, gel, and LiFePO4 batteries, with CAN-Bus and Bluetooth monitoring.
- Description
- Ask a Question
-

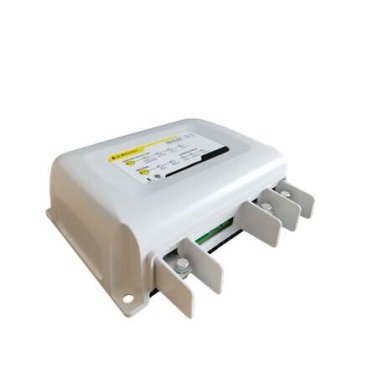

Cristec DC12-36/15PL - Dcpower+ 12V To 36V 15A Converter Charger
The Cristec DCPOWER+ DC12-36/15PL converter charger is designed for efficient and silent charging of onboard battery systems. Built for professional and marine environments, it ensures reliable performance with a fanless design based on natural convection, guaranteeing completely silent operation.
This converter charger features an advanced 5-step charging profile including Boost, Absorption, Floating, Refresh, and Reboost, which optimizes charging efficiency and extends battery lifespan. It is compatible with multiple battery technologies such as open lead-acid, gel, AGM, and Lithium LiFePO4 batteries with BMS.
A front keypad allows quick and easy selection of the battery technology. Integrated CAN-Bus and Bluetooth Low Energy interfaces enable remote monitoring and configuration. The unit operates efficiently up to +60 °C without power derating and complies with ISO 8846 and SAE J1171 standards.
Technical Specifications
Rated Current 15 A Input Tension 12 – 64 V Maximum Intensity 45 A Decibel Level 0 dB Ingress Protection IP22 Height 220 mm Length 238 mm Width 96 mm Depth 81 mm Number Of Outputs 1 Weight 2 kg
Brand: Cristec
Article Code: DC12-36/15PL -
