ID
1340132
$ 958.36
1-2 weeks delivery time
-
+
Cristec DC12-12/60PL is a silent DC-DC converter charger with a fanless design, advanced 5-step charging, and support for multiple battery types, offering efficient and reliable onboard battery management with CAN-Bus and Bluetooth connectivity.
- Description
- Ask a Question
-

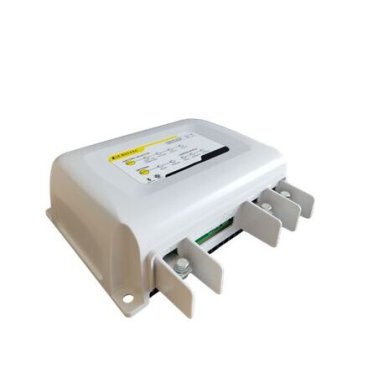

Cristec DC12-12/60PL - Dcpower+ 12V To 12V 60A Converter Charger
The Cristec DCPOWER+ DC-DC converter charger is designed to ensure efficient, reliable, and completely silent battery charging on board. Thanks to natural convection cooling, it operates without a fan, making it ideal for noise-sensitive environments.
This converter charger features an advanced 5-step charging profile including Boost, Absorption, Floating, Refresh, and Reboost, optimizing battery life and performance. It supports multiple battery technologies such as open lead-acid, gel, AGM, and Lithium LiFePO4 with BMS.
A front keypad allows easy selection of battery type, while CAN-Bus and Bluetooth Low Energy interfaces enable remote monitoring and control. The unit operates efficiently up to +60 °C without power derating and complies with ISO 8846 and SAE J1171 standards.
Technical Specifications
Rated Current 60 A Capacity 60 A Input Tension 10 – 16 V Maximum Intensity 65 A Ingress Protection IP22 Decibel Level 0 dB Dimensions 238 x 220 x 81 mm Length 238 mm Height 220 mm Width 81 mm Depth 81 mm Number Of Outputs 1 Weight 2 kg
Brand: Cristec
Article Code: DC12-12/60PL -
