ID
1358978
$ 52.86
1-2 weeks delivery time
Length, mm:
- 200
- 225
- 275
- 300
- 400
- 450
- 500
The Hollex HWWS Series waste water level senders are tube float sensors designed for 12V/24V VDC systems with a resistance range of 240–33 Ohm. They feature a Ø54 mm body, SAE 5 flange, and 30 mm installation diameter. Available in lengths from 200 mm to 500 mm, these senders are designed for accurate waste water tank level monitoring in marine applications.
- Description
- Ask a Question
-

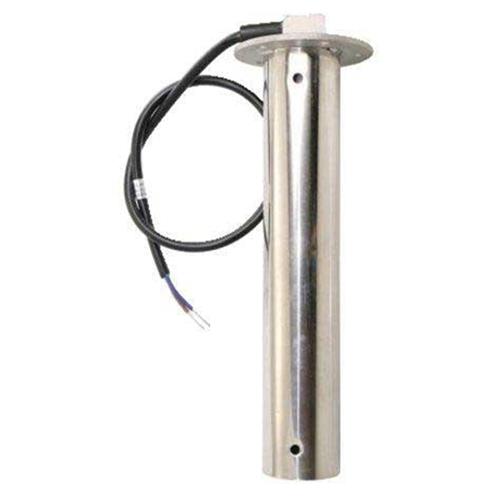

Hollex HWWS Series – Waste Water Level Sender 240–33 Ohm, Ø54 mm, SAE 5 Flange, Cut-out Ø30 mm, 12V/24V (200–500 mm)
The Hollex HWWS Series waste water level senders are designed for accurate monitoring of waste water tank levels in marine applications. These tube float sensors provide reliable resistance-based measurement and are compatible with standard onboard level instruments.
With a resistance range of 240–33 Ohm, the senders are suitable for 12V and 24V VDC systems. The series is available in multiple lengths from 200 mm to 500 mm, allowing selection according to tank depth and installation requirements.
Each sender features a 54 mm body diameter, SAE 5 flange, and 30 mm installation diameter. This construction makes the series suitable for integration into marine waste water tank systems where reliable level indication is required.
Key Features
- Waste water tank level monitoring
- Resistance range: 240–33 Ohm
- Tube float sensor design
- Suitable for 12V / 24V VDC systems
- SAE 5 flange
- Product diameter: 54 mm
- Installation diameter: 30 mm
- Available in lengths from 200 mm to 500 mm
Available Variants
Product Number Length Resistance HWWS200 200 mm 240–33 Ohm HWWS225 225 mm 240–33 Ohm HWWS275 275 mm 240–33 Ohm HWWS300 300 mm 240–33 Ohm HWWS400 400 mm 240–33 Ohm HWWS450 450 mm 240–33 Ohm HWWS500 500 mm 240–33 Ohm
Technical Specifications
Brand Hollex Series HWWS Sensor Type Tube Float Sensor Application Waste Water Tank Level Monitoring Resistance Range 240–33 Ohm Voltage Type VDC Operating Voltage 12V / 24V Product Diameter 54 mm Installation Diameter 30 mm Flange SAE 5 -
