ID
1358986
$ 32.61
1-2 weeks delivery time
Type:
- 0–5 Bar
- 0–10 Bar
Item:
- 1-Pole
- 2-Pole
- 2-Pole+Alarm

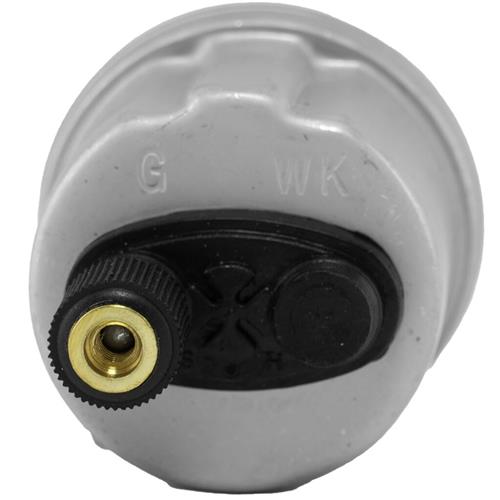

The Hollex HOPS Series oil pressure sensors are pressure senders for 12V/24V VDC systems with M10 x 1.0 thread, available in 0–5 Bar and 0–10 Bar versions. The series includes 1-pole and 2-pole variants, with or without warning contact, and mass-free versions where specified. These sensors are designed for accurate oil pressure monitoring in marine and engine applications.
- Description
- Ask a Question
-
Hollex HOPS Series – Oil Pressure Sensor M10 x 1.0, 0–5 / 0–10 Bar, 12V/24V VDC, 1-Pole / 2-Pole, with or without Warning Contact
The Hollex HOPS Series oil pressure sensors are designed for accurate oil pressure measurement in marine and engine applications. These pressure senders are suitable for 12V and 24V VDC systems and provide reliable signal transmission for onboard instruments.
All variants in this series feature an M10 x 1.0 thread and are available in pressure ranges of 0–5 Bar or 0–10 Bar. Depending on the model, the sensors are supplied in 1-pole or 2-pole versions, with or without warning contact, and with mass-free versions where specified.
This range allows selection according to system configuration and monitoring requirements, including standard oil pressure indication and combined pressure/warning functions.
Key Features
- Oil pressure sender for marine and engine applications
- Thread: M10 x 1.0
- Voltage type: VDC
- Suitable for 12V / 24V systems
- Available pressure ranges: 0–5 Bar and 0–10 Bar
- Available in 1-pole and 2-pole versions
- Variants with and without warning contact
- Mass-free versions available where specified
Available Variants
Product Number Thread Warning Contact Pressure Range Mass Free Connection Type HOPS9001C M10 x 1.0 – 0–5 Bar No 1-Pole HOPS2002C M10 x 1.0 – 0–5 Bar Yes 2-Pole HOPS2003C M10 x 1.0 – 0–10 Bar Yes 2-Pole HOPS0004C M10 x 1.0 0.7 Bar 0–5 Bar No 2-Pole HOPS0009C M10 x 1.0 0.5 Bar 0–10 Bar No 2-Pole HOPS9010C M10 x 1.0 – 0–10 Bar No 1-Pole
Technical Specifications
Brand Hollex Series HOPS Sensor Type Pressure Sender Application Oil Pressure Monitoring Thread M10 x 1.0 Voltage Type VDC Operating Voltage 12V / 24V Pressure Range Options 0–5 Bar / 0–10 Bar Connection Type Options 1-Pole / 2-Pole Warning Contact Options None / 0.7 Bar / 0.5 Bar Mass Free Options Yes / No -
