Hollex Water Temperature Sensors M14 x 1.5, 120°C, 12/24

ID 1358996

$ 18.91

1-2 weeks delivery time

Item:

120°C
120°C + Alarm (96°C)
120°C (Mass-Free)

The Hollex HWTS Series water temperature sensors are designed for 12V/24V VDC systems with M14 x 1.5 thread and a temperature range up to 120°C. The series includes standard, mass-free, and warning contact (96°C) versions, providing reliable water temperature monitoring for marine engine applications.

Description
Ask a Question

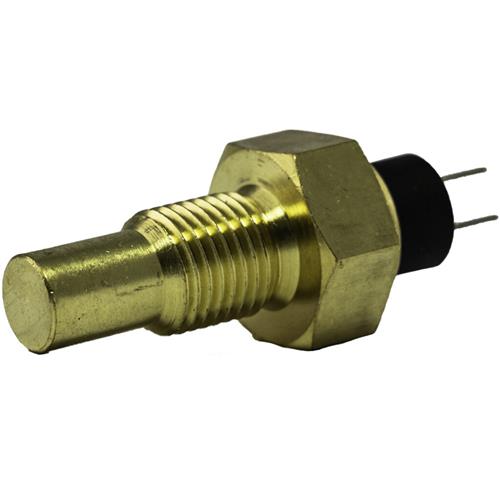

Hollex HWTS Series – Water Temperature Sensor M14 x 1.5, 120°C, 12V/24V VDC, Mass-Free or with Warning 96°C

The Hollex HWTS Series water temperature sensors are designed for accurate monitoring of coolant or water temperature in marine engine systems. These sensors provide stable and reliable readings, helping ensure safe and efficient engine operation.

All variants feature an M14 x 1.5 thread and operate on 12V or 24V VDC systems. The sensors are designed for temperature measurement up to 120°C, making them suitable for a wide range of marine and engine applications.

The series includes standard versions, mass-free (isolated ground) models, and variants equipped with a warning contact at 96°C. This allows flexible selection depending on system configuration, including compatibility with different gauge types and alarm requirements.

Key Features

Water temperature sensor for marine engine systems
Thread: M14 x 1.5
Voltage type: VDC
Operating voltage: 12V / 24V
Temperature range: up to 120°C
Available in standard and mass-free versions
Optional warning contact at 96°C

Available Variants

Product Number	Thread	Temperature	Warning Contact	Mass Free
HWTS1001N	M14 x 1.5	120°C	–	Yes
HWTS1006D	M14 x 1.5	120°C	96°C	No
HWTS1006N	M14 x 1.5	120°C	–	No

Technical Specifications

Brand	Hollex
Series	HWTS
Sensor Type	Temperature Sensor
Application	Water / Coolant Temperature Monitoring
Thread	M14 x 1.5
Voltage Type	VDC
Operating Voltage	12V / 24V
Maximum Temperature	120°C
Warning Contact	None / 96°C
Mass Free	Yes / No
