The Hollex HFWS Series diesel/water tank sensors are tube float level sensors designed for 12V/24V VDC systems with a resistance range of 0–190 Ohm. They feature a Ø54 mm body, SAE 5 flange, and 30 mm installation diameter. Available in lengths from 150 mm to 800 mm, these sensors are suitable for diesel and water tank level monitoring in marine applications.
- Description
- Ask a Question
-

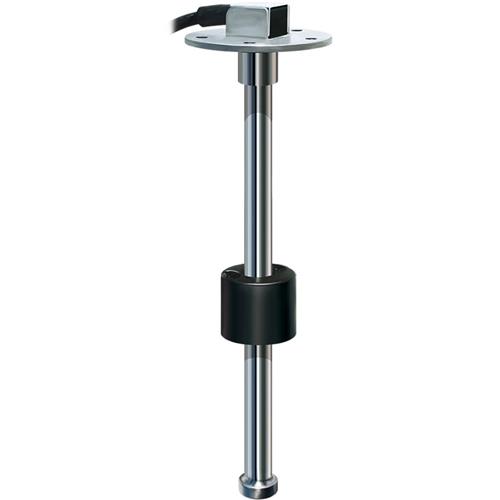

Hollex HFWS Series – Diesel / Water Tank Sensor 0–190 Ohm, Ø54 mm, SAE 5 Flange, Cut-out Ø30 mm, 12V/24V (150–800 mm)
The Hollex HFWS Series tank sensors are designed for accurate level monitoring in diesel and water tanks in marine applications. These tube float sensors provide reliable resistance-based measurement and are compatible with standard onboard gauges.
With a resistance range of 0–190 Ohm, the sensors are suitable for 12V and 24V VDC systems. The series is available in multiple lengths from 150 mm to 800 mm, allowing selection according to tank depth and installation requirements.
Each sensor features a 54 mm body diameter, SAE 5 flange, and 30 mm installation diameter. This construction makes the series suitable for integration into a wide range of marine tank systems for diesel or water level monitoring.
Key Features
- Tank level sensor for diesel and water applications
- Resistance range: 0–190 Ohm
- Tube float sensor design
- Suitable for 12V / 24V VDC systems
- SAE 5 flange
- Product diameter: 54 mm
- Installation diameter: 30 mm
- Available in lengths from 150 mm to 800 mm
Available Variants
Product Number Length Resistance HFWS150 150 mm 0–190 Ohm HFWS200 200 mm 0–190 Ohm HFWS225 225 mm 0–190 Ohm HFWS250 250 mm 0–190 Ohm HFWS275 275 mm 0–190 Ohm HFWS300 300 mm 0–190 Ohm HFWS350 350 mm 0–190 Ohm HFWS400 400 mm 0–190 Ohm HFWS450 450 mm 0–190 Ohm HFWS500 500 mm 0–190 Ohm HFWS550 550 mm 0–190 Ohm HFWS600 600 mm 0–190 Ohm HFWS650 650 mm 0–190 Ohm HFWS700 700 mm 0–190 Ohm HFWS750 750 mm 0–190 Ohm HFWS800 800 mm 0–190 Ohm
Technical Specifications
Brand Hollex Series HFWS Sensor Type Tube Float Sensor Application Diesel / Water Tank Level Monitoring Resistance Range 0–190 Ohm Voltage Type VDC Operating Voltage 12V / 24V Product Diameter 54 mm Installation Diameter 30 mm Flange SAE 5 -
