ID
1358952
$ 34.70
1-2 weeks delivery time
Color:
- Black
- White
The Hollex HRTG Series trim gauges are analog instruments designed for 9–32V DC systems with a resistance range of 0–190 Ohm. They feature a Ø59 mm housing with a 52 mm installation diameter, IP67 protection, and red backlight. Constructed from stainless steel 316 and polyester, these gauges are suitable for 12V and 24V marine applications and available in black or white finishes.
- Description
- Ask a Question
-

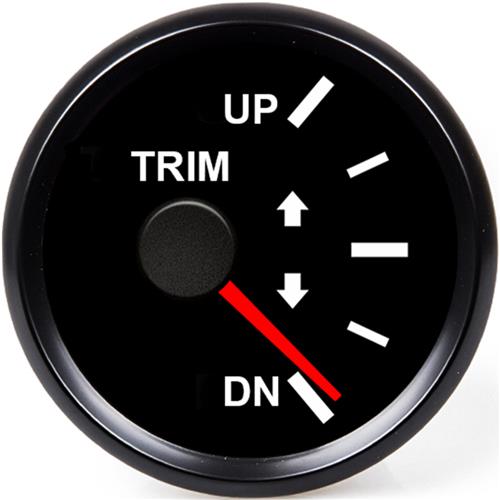

Hollex HRTG Series – Trim Gauge Analog 9–32V, 0–190 Ohm, Ø59 mm, Cut-out Ø52 mm, IP67 (Black / White)
The Hollex HRTG Series trim gauges are designed for accurate monitoring of trim position in marine applications. These analog instruments provide clear and reliable indication of trim levels, helping optimize vessel performance and handling.
Operating within a 9–32V DC voltage range, these gauges are suitable for both 12V and 24V onboard systems. The 0–190 Ohm resistance range ensures compatibility with standard marine trim senders.
The compact design features a 59 mm outer diameter and requires a 52 mm installation cut-out, making it suitable for standard dashboard installations. With IP67 protection, the gauge is resistant to water and dust, ensuring reliable operation in marine environments.
Key Features
- Trim position monitoring
- Resistance range: 0–190 Ohm
- Analog display for clear readout
- Operating voltage: 9–32V DC (12V / 24V systems)
- IP67 protection class
- Red backlight for visibility
- Round housing design
- Available in black and white finishes
- Durable construction: stainless steel 316 and polyester
Available Variants
Product Number Resistance Range Color Installation Diameter HRTG2152B 0–190 Ohm Black 52 mm HRTG2152W 0–190 Ohm White 52 mm
Technical Specifications
Brand Hollex Instrument Type Trim Gauge Display Type Analog Voltage Type VDC Operating Voltage 9–32V Resistance 0–190 Ohm Protection Class IP67 Shape Round Product Diameter 59 mm Installation Diameter 52 mm Light Color Red Material Stainless Steel 316, Polyester -
