ID
1358936
$ 34.70
1-2 weeks delivery time
Color:
- Black
- White
The Hollex HRAG Series rudder angle gauges are analog instruments for 9–32V DC systems, designed to display rudder position from port to starboard with a resistance range of 0–190 Ohm. They feature a Ø59 mm housing with a 52 mm installation cut-out, IP67 protection class, and stainless steel 316 construction. Suitable for 12V and 24V systems and available in black or white versions, these gauges provide reliable rudder position indication for marine navigation.
- Description
- Ask a Question
-

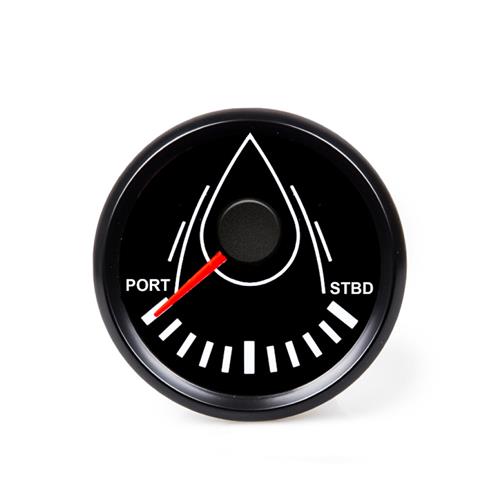

Hollex HRAG Series – Rudder Angle Gauge 0–190 Ohm, 9–32V, Ø59 mm, Cut-out Ø52 mm, IP67 (Black / White)
The Hollex HRAG Series rudder angle gauges are designed for accurate indication of rudder position in marine applications. They provide clear visual feedback of rudder angle from port to starboard, supporting safe and controlled vessel maneuvering.
These analog instruments operate within a 9–32V DC range and are suitable for both 12V and 24V onboard systems. The gauges are compatible with senders in the 0–190 Ohm range.
The compact round housing with a 59 mm outer diameter and a 52 mm installation cut-out ensures easy integration into standard dashboards. With IP67 protection, the gauges are resistant to water and dust, making them suitable for harsh marine environments.
Key Features
- Rudder angle indication (Port – Starboard)
- Resistance range: 0–190 Ohm
- Suitable for 9–32V DC systems (12V / 24V)
- Analog display for clear position reading
- IP67 protection class
- Round housing design
- Available in black and white versions
- Durable materials: stainless steel 316 and polyester
Available Variants
Product Number Scale Resistance Color Installation Diameter HRAG1952B Port – Stbd 0–190 Ohm Black 52 mm HRAG1952W Port – Stbd 0–190 Ohm White 52 mm
Technical Specifications
Brand Hollex Instrument Type Rudder Angle Indicator Display Type Analog Voltage Type VDC Operating Voltage 9–32V Resistance Range 0–190 Ohm Protection Class IP67 Shape Round Product Diameter 59 mm Installation Diameter 52 mm Material Stainless Steel 316, Polyester Light Color Red -
