ID
1358928
$ 34.70
1-2 weeks delivery time
Type:
- 0-5 Bar
- 0-10 Bar
Color:
- Black
- White

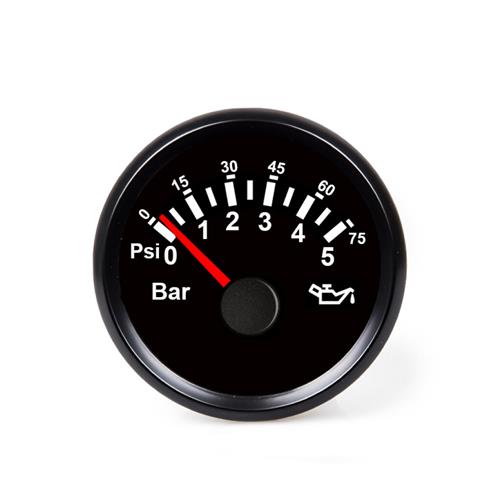

The Hollex HOPG Series oil pressure gauges are analog instruments for 9–32V DC systems, available with 0–5 Bar and 0–10 Bar measurement ranges. They feature a Ø59 mm housing with a 52 mm installation cut-out, IP67 protection class, and stainless steel 316 construction. Designed for 12V and 24V systems, and available in black or white versions, these gauges provide reliable oil pressure monitoring for marine engines.
- Description
- Ask a Question
-
Hollex HOPG Series – Oil Pressure Gauge 0–5 / 0–10 Bar, 9–32V, Ø59 mm, Cut-out Ø52 mm, IP67 (Black / White)
The Hollex HOPG Series oil pressure gauges are designed for accurate monitoring of engine oil pressure in marine applications. They are available in two measurement ranges: 0–5 Bar and 0–10 Bar, allowing selection based on engine requirements.
Suitable for 12V and 24V DC systems, the gauges operate within a 9–32V voltage range. The round housing with a 59 mm outer diameter and a 52 mm installation cut-out ensures compatibility with standard instrument panels.
With an IP67 protection rating, the gauges are resistant to water and dust, ensuring reliable operation in marine environments. The construction combines stainless steel 316 and polyester for durability and corrosion resistance.
Key Features
- Oil pressure measurement ranges: 0–5 Bar and 0–10 Bar
- Suitable for 9–32V DC systems (12V / 24V)
- Analog display for clear pressure reading
- IP67 protection class
- Round housing design
- Available in black and white versions
- Durable materials: stainless steel 316 and polyester
Available Variants
Product Number Pressure Range Color Installation Diameter HOPG0552B 0–5 Bar Black 52 mm HOPG0552W 0–5 Bar White 52 mm HOPG1052B 0–10 Bar Black 52 mm HOPG1052W 0–10 Bar White 52 mm
Technical Specifications
Brand Hollex Instrument Type Oil Pressure Gauge Display Type Analog Voltage Type VDC Operating Voltage 9–32V Protection Class IP67 Shape Round Product Diameter 59 mm Installation Diameter 52 mm Material Stainless Steel 316, Polyester Light Color Red -
