ID
1358939
$ 72.53
1-2 weeks delivery time
Color:
- Black
- White
The Hollex HRAG Series Type 2 rudder angle gauges are analog instruments for 9–32V DC systems, designed with a 40°/40° port–starboard scale and 0–190 Ohm resistance range. They feature a Ø93 mm housing with an 85 mm installation cut-out, IP67 protection class, and stainless steel 316 construction. Suitable for 12V and 24V systems and available in black or white versions, these gauges provide accurate rudder position indication for marine navigation.
- Description
- Ask a Question
-

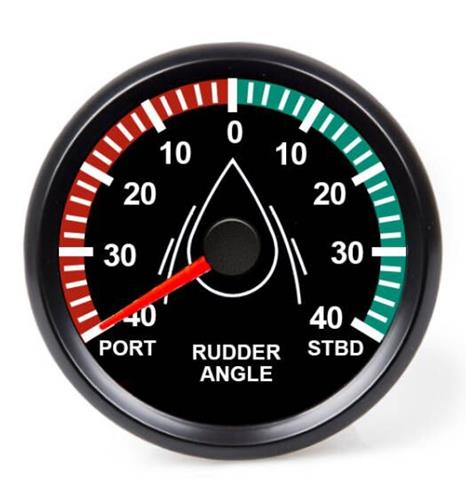

Hollex HRAG Series Type 2 – Rudder Angle Gauge 40°/40°, 0–190 Ohm, 9–32V, Ø93 mm, Cut-out Ø85 mm, IP67 (Black / White)
The Hollex HRAG Series Type 2 rudder angle gauges are designed for accurate rudder position indication in marine applications. They provide a clear analog display with a 40° port and 40° starboard scale, allowing precise monitoring of rudder movement.
These gauges operate within a 9–32V DC range and are suitable for both 12V and 24V onboard systems. They are compatible with senders in the 0–190 Ohm range.
The round housing has a 93 mm outer diameter and requires an 85 mm installation cut-out, making it suitable for larger dashboard panels. With an IP67 protection rating, the gauges are resistant to water and dust, ensuring reliable performance in marine environments.
Key Features
- Rudder angle indication with 40° port / 40° starboard scale
- Resistance range: 0–190 Ohm
- Suitable for 9–32V DC systems (12V / 24V)
- Analog display for clear position reading
- IP67 protection class
- Round housing design
- Available in black and white versions
- Durable materials: stainless steel 316 and polyester
Available Variants
Product Number Scale Resistance Color Installation Diameter HRAG1985B 40° / 40° 0–190 Ohm Black 85 mm HRAG1985W 40° / 40° 0–190 Ohm White 85 mm
Technical Specifications
Brand Hollex Instrument Type Rudder Angle Indicator Display Type Analog Voltage Type VDC Operating Voltage 9–32V Resistance Range 0–190 Ohm Protection Class IP67 Shape Round Product Diameter 93 mm Installation Diameter 85 mm Material Stainless Steel 316, Polyester -
