ID
1358917
$ 79.56
1-2 weeks delivery time
Color:
- Black
- White
The Hollex HAMG1352 Series is an analog ammeter designed for 9–32V DC systems (12V/24V) with a measurement range up to 80A and supplied with a shunt. It features a Ø59 mm round housing with a 52 mm installation cut-out, IP67 protection rating, and analog display. Constructed from stainless steel 316 and polyester, and available in black or white versions, it provides reliable current monitoring for marine electrical systems.
- Description
- Ask a Question
-

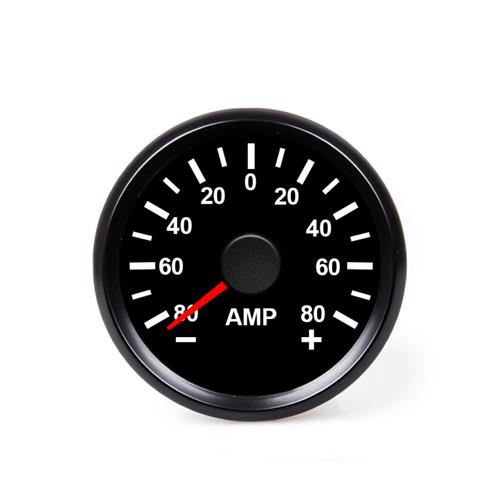

Hollex HAMG1352 Series – Ammeter 80A 9-32V with Shunt, Ø59 mm, Cut-out Ø52 mm, IP67 (Black / White)
The Hollex HAMG1352 Series ammeters are designed for accurate monitoring of electrical current in marine systems. They operate within a voltage range of 9–32V DC, making them suitable for both 12V and 24V onboard installations.
These analog instruments provide current measurement up to 80 Amps and are supplied with a shunt for proper installation and operation. The clear analog display allows easy monitoring of electrical system performance.
The compact round housing features a 59 mm outer diameter and a 52 mm installation cut-out, ensuring compatibility with standard dashboard layouts. With an IP67 protection rating, the instrument is resistant to water and dust, making it suitable for marine environments. The construction combines stainless steel 316 and polyester for durability and corrosion resistance.
Key Features
- Analog ammeter for current monitoring
- Measurement range: up to 80 A
- Supplied with shunt
- Voltage range: 9–32V DC (12V / 24V systems)
- IP67 protection class
- Round housing design
- Available in black and white versions
- Durable construction: stainless steel 316 and polyester
Available Variants
Product Number Color Scale Installation Diameter HAMG1352B Black 80 A 52 mm HAMG1352W White 80 A 52 mm
Technical Specifications
Brand Hollex Instrument Type Ammeter Display Type Analog Voltage 9–32V DC (12V / 24V) Measurement Range 80 A Protection Class IP67 Shape Round Product Diameter 59 mm Installation Diameter 52 mm Material Stainless Steel 316, Polyester -
