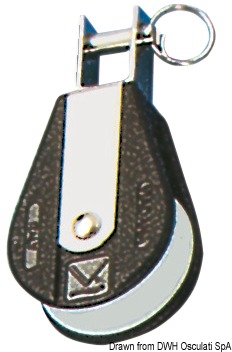

Viadana Wind Speed Ball Bearing Single Block with Fixed Toggle Head for Rope up to 8-10 mm

ID 1391218

$ 38.46

1-2 weeks delivery time

Diameter, mm:

Viadana Wind Speed Single Block with Fixed Toggle Head is a ball bearing sailing block with reinforced black nylon and stainless steel construction. Available for ropes up to 8 or 10 mm with 34-45 mm sheaves, breaking loads of 800-950 kg and working loads of 300-370 kg.

Description
Ask a Question

Viadana Wind Speed Ball Bearing Single Block with Fixed Toggle Head for Rope up to 8-10 mm

Viadana Wind Speed single block with fixed toggle head is part of the ball bearing block series. The reinforced model combines black nylon and stainless steel and is available in two sizes.

Technical Features
- Brand: Viadana
- Series: Wind Speed
- Version: Single with fixed toggle head
- Type: Ball bearing block
- Construction: Reinforced black nylon and stainless steel
- Maximum rope diameter: 8-10 mm depending on version
- Sheave diameter: 34-45 mm depending on version
Available Variants

Max. Rope Diameter Sheave Diameter Breaking Load Working Load Osculati Code

8 mm 34 mm 800 kg 300 kg 55.065.08

10 mm 45 mm 950 kg 370 kg 55.065.10

Max. Rope Diameter	Sheave Diameter	Breaking Load	Working Load	Osculati Code
8 mm	34 mm	800 kg	300 kg	55.065.08
10 mm	45 mm	950 kg	370 kg	55.065.10
