ID
1393821
$ 154.58
1-2 weeks delivery time
-
+
SeaSure 01.08 is a 25 mm spar mounted high-load block designed for medium- to high-load applications with slow-running ropes. It uses a brass sheave with stainless steel side plates and a simple plain bearing, with an MBS / breaking load of 950 kg and an SWL of 475 kg. The block is fixed directly to a spar using 5 mm bolts or rivets. SeaSure specifies a maximum rope diameter of 4 mm.
- Description
- Ask a Question
-

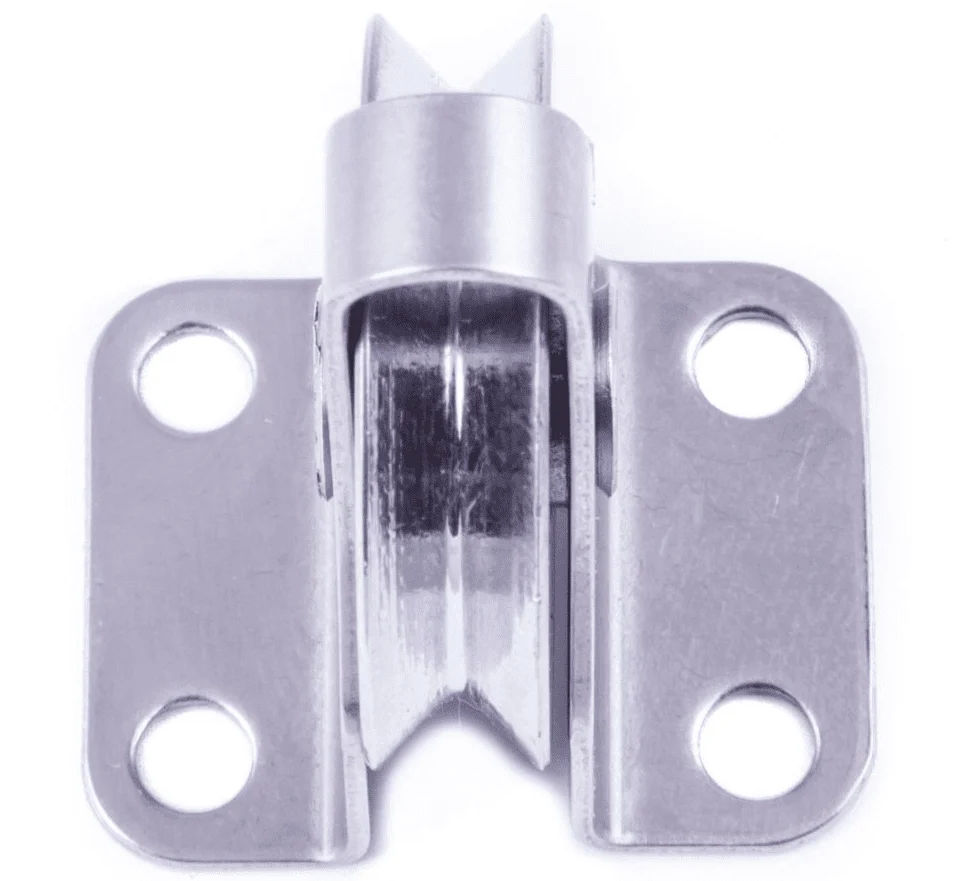

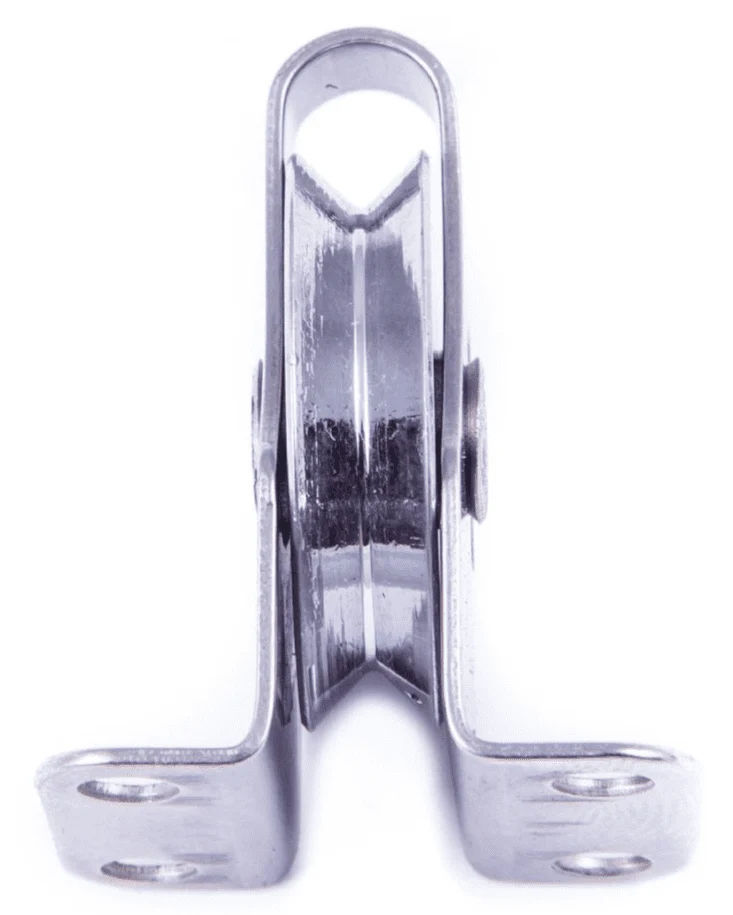

SeaSure 01.08 25 mm Brass Sheave Spar Mounted High-Load Block
SeaSure 01.08 is a 25 mm spar mounted block designed to carry higher loads than standard Mini blocks. It is intended for medium- to high-load applications with slow-running ropes and is commonly used with Dyneema, Spectra and Kevlar lines.
The block uses a brass sheave together with stainless steel side plates. SeaSure states that the stainless steel side plates help prevent highly abrasive ropes from cutting into the block structure.
The spar mounted configuration is designed for direct installation using 5 mm bolts or rivets, providing a fixed rope-routing point on the mounting surface.
The SeaSure 01.08 has a maximum breaking strength (MBS) of 950 kg and a safe working load (SWL) of 475 kg. The supplied catalogue data specifies a maximum rope diameter of 5 mm, while SeaSure lists a maximum rope diameter of 4 mm.
Product Features
- Brand: SeaSure
- Manufacturer article number: 01.08
- Product type: Spar mounted high-load block
- Series: Mini
- Block type: Turtle
- Sheave size: 25 mm
- Sheave material: Brass
- Side plate material: Stainless steel
- Bearing type: Simple / plain bearing
- Mounting type: Spar mounted
- Mounting hardware size: 5 mm bolts or rivets
- Maximum rope diameter: 5 mm according to supplied catalogue data
- Maximum rope diameter: 4 mm according to SeaSure
- Number of sheaves: 1
- MBS / breaking load: 950 kg
- SWL: 475 kg
- Swivel: No
- Ratchet: No
- Clamp: No
- Becket: No
- Colour: Stainless steel
Applications and Rope Types
- Medium- to high-load applications
- Slow-running ropes
- Spar-mounted rope routing
- Dyneema lines
- Spectra lines
- Kevlar lines
Technical Specifications
Parameter Specification Manufacturer Article 01.08 Series Mini Block Type Turtle Mounting Type Spar mounted Size 25 mm Number of Sheaves 1 Sheave Material Brass Bearing Simple / plain bearing Mounting Hardware 5 mm bolts or rivets Maximum Rope Diameter – Supplied Catalogue Data 5 mm Maximum Rope Diameter – SeaSure 4 mm MBS / Breaking Load 950 kg SWL 475 kg Swivel No Ratchet No Clamp No Becket No Colour Stainless steel -
