Diameter, mm:
- 5
- 6
- 8
Item:
- 10 pcs
The Wichard High Resistance Straight Key Pin Shackle with Bar is manufactured from forged 316L stainless steel and engineered for demanding sailing and rigging applications. Designed with a high-resistance (HR) body, integrated bar, and secure key pin locking system, these shackles are particularly recommended for mainsail halyards where maximum strength, low weight, and corrosion resistance are essential. Available in Ø5 mm, Ø6 mm, and Ø8 mm versions with breaking loads up to 2,560 kg.
- Description
- Ask a Question
-

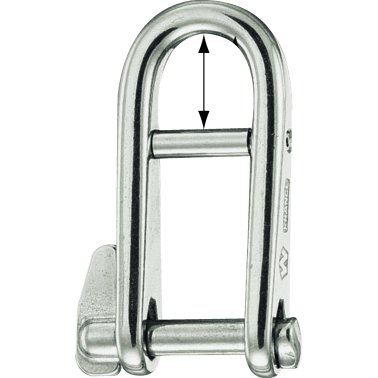

Wichard High Resistance Straight Key Pin Shackle with Bar Stainless Steel 316L
The Wichard High Resistance Straight Key Pin Shackle with Bar is a professional-grade forged shackle manufactured from marine-grade 316L stainless steel for exceptional strength, corrosion resistance, and long service life. Designed specifically for high-load sailing applications, it combines a straight body, integrated bar, and secure key pin locking system to deliver reliable performance under dynamic loads.
Officially distributed by Plastimo, these original Wichard HR shackles are recommended for mainsail halyards and other demanding rigging systems where strength-to-weight ratio, safety, and durability are critical.
Features
- Original Wichard product
- Official Plastimo distributor reference included
- Original Wichard OEM reference included
- Forged marine-grade stainless steel 316L construction
- High Resistance (HR) design
- Straight body with integrated bar
- Secure key pin locking system
- Recommended for mainsail halyards
- Excellent corrosion resistance for marine environments
Available Variations
Plastimo SKU Wichard OEM Diameter Length (A) Width (B) Bar (C) Breaking Load SWL 422200 W 91432 Ø 5 mm 37 mm 13 mm 12 mm 1,200 kg 240 kg 422201 W 91433 Ø 6 mm 45 mm 16 mm 12 mm 1,760 kg 352 kg 422202 W 91434 Ø 8 mm 59 mm 21 mm 20 mm 2,560 kg 512 kg
Technical Specifications
Brand Wichard Distributor Plastimo Material Forged stainless steel 316L Type High Resistance straight key pin shackle with bar Locking system Key pin Construction Integrated bar Available diameters Ø5 mm, Ø6 mm, Ø8 mm Breaking load range 1,200–2,560 kg Safe Working Load (SWL) 240–512 kg Recommended use Mainsail halyards and high-load sailing rigging
Applications
- Mainsail halyards
- Standing and running rigging
- Performance and racing yachts
- Deck hardware connections
- Marine lifting points
- Professional sailing equipment
- Heavy-duty marine fastening
-
