ID
1311138
$ 243.36
1-2 weeks delivery time
-
+
Turnbuckle Closed Body Forks M33 are made according to DIN 1478, featuring a closed body with locknuts, clip, nut, and bolt. Constructed from electro-galvanized steel, they have a safety factor of 4 and a safe working load of 5,000 kg. The forks have an inside width of 38 mm, body length of 385 mm, material diameter of 24 mm, and M33 metric threads, weighing approximately 6,400 gr.
- Description
- Ask a Question
-

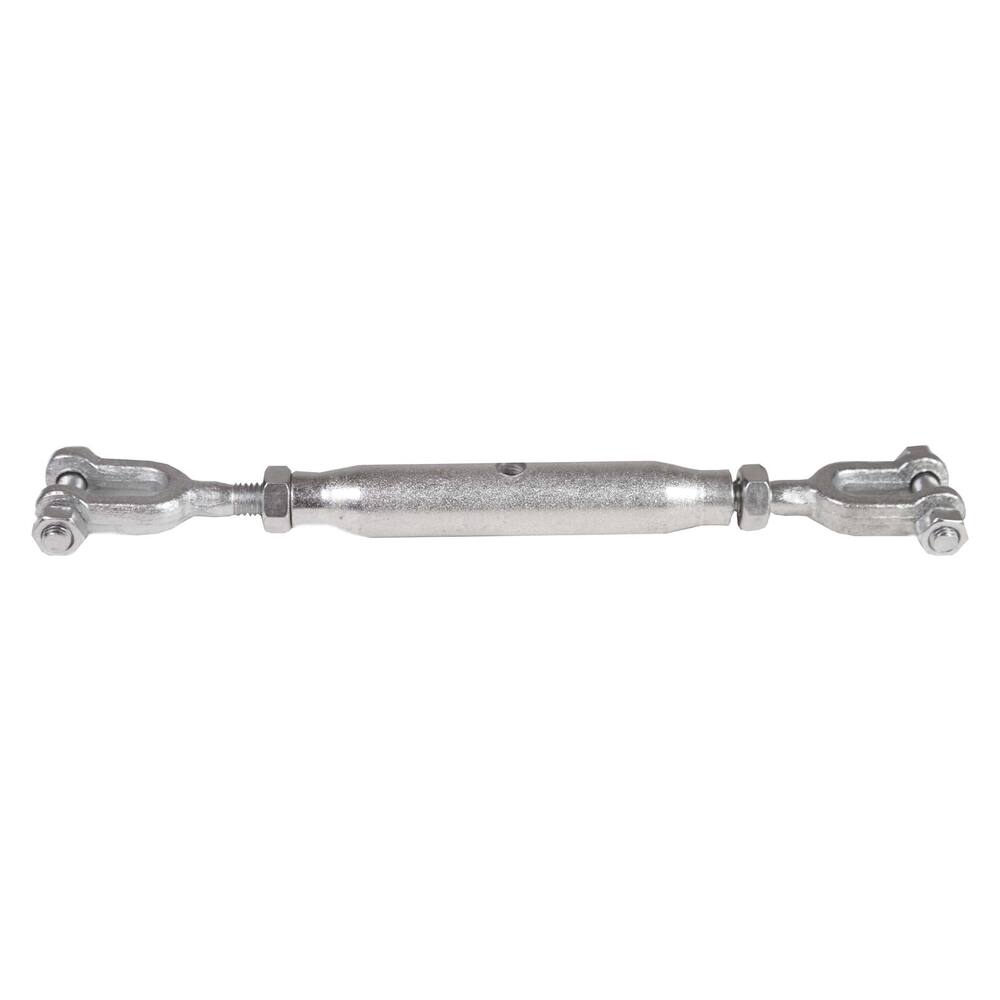

Turnbuckle Closed Body Forks M33
- Manufactured according to DIN 1478.
- Closed body turnbuckle featuring locknuts on both sides with clip, nut, and bolt.
- Safety factor 4 (minimum breaking load is 4 × working load).
- Material: steel, electro-galvanized
- Thread type: metric
- Product code: 04.55.532

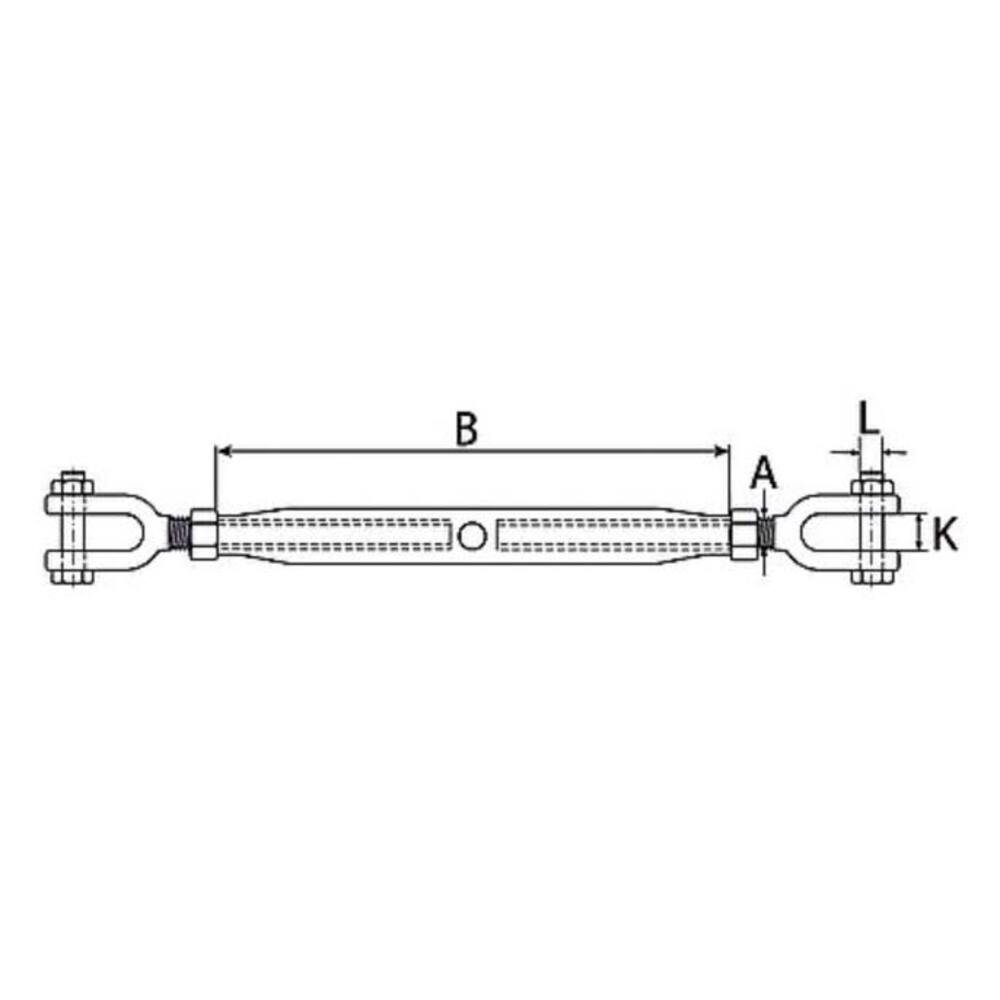

- Inside width (k): 38 mm
- Approx. weight: 6,400 gr
- Thread (a): M33
- Body length (b): 385 mm
- Material diameter (l): 24 mm
- Safe working load: 5,000 kg
-
