ID
1311136
$ 67.40
1-2 weeks delivery time
-
+
Closed body turnbuckle with forks, M20 threading, 230 mm in length, weighing 2,200 gr, made of steel with locknuts and clips, compliant with DIN 1478 and safe working load 1,500 kg.
- Description
- Ask a Question
-

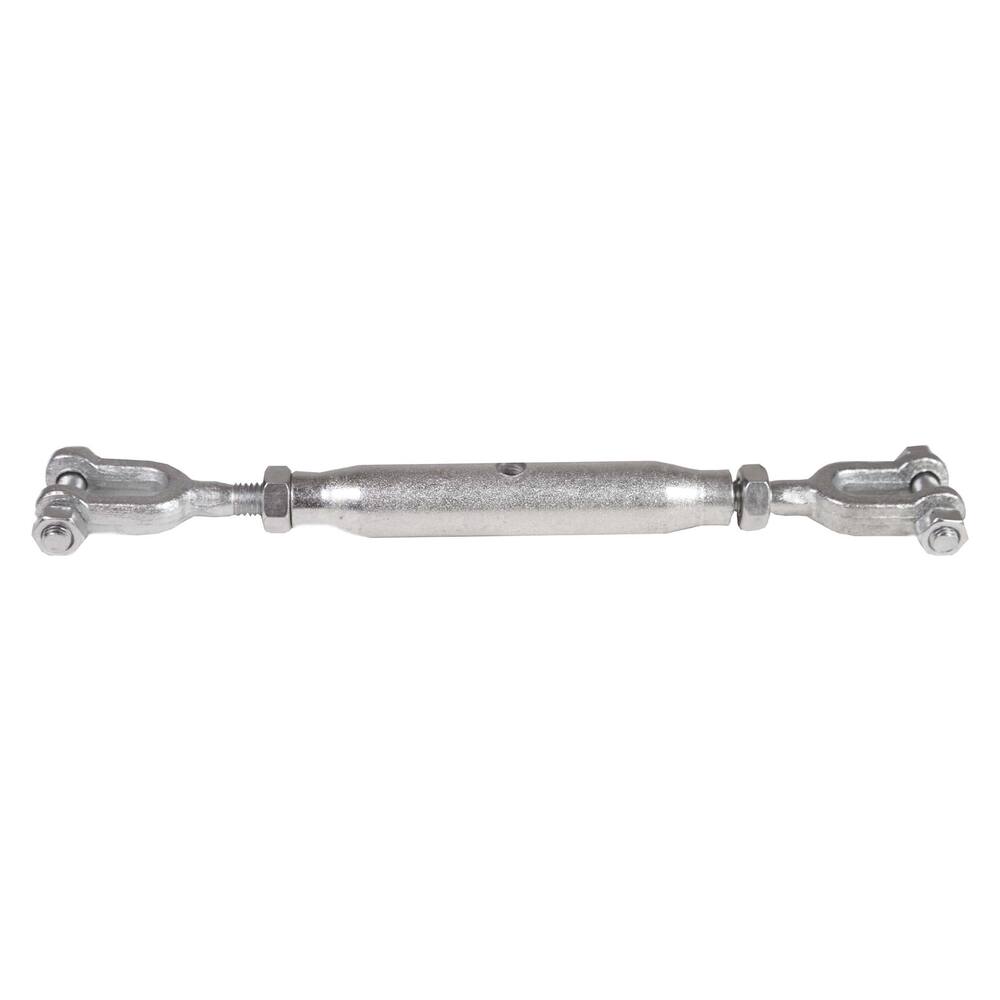

Turnbuckle Closed Body Forks M20
- Designed according to DIN 1478 standards.
- Closed body turnbuckle equipped with locknuts on both sides, including clip, nut, and bolt.
- Safety factor of 4 (minimum breaking load equals 4 times the working load).
- Material: steel, electro-galvanized
- Thread type: metric
- Product code: 04.55.519

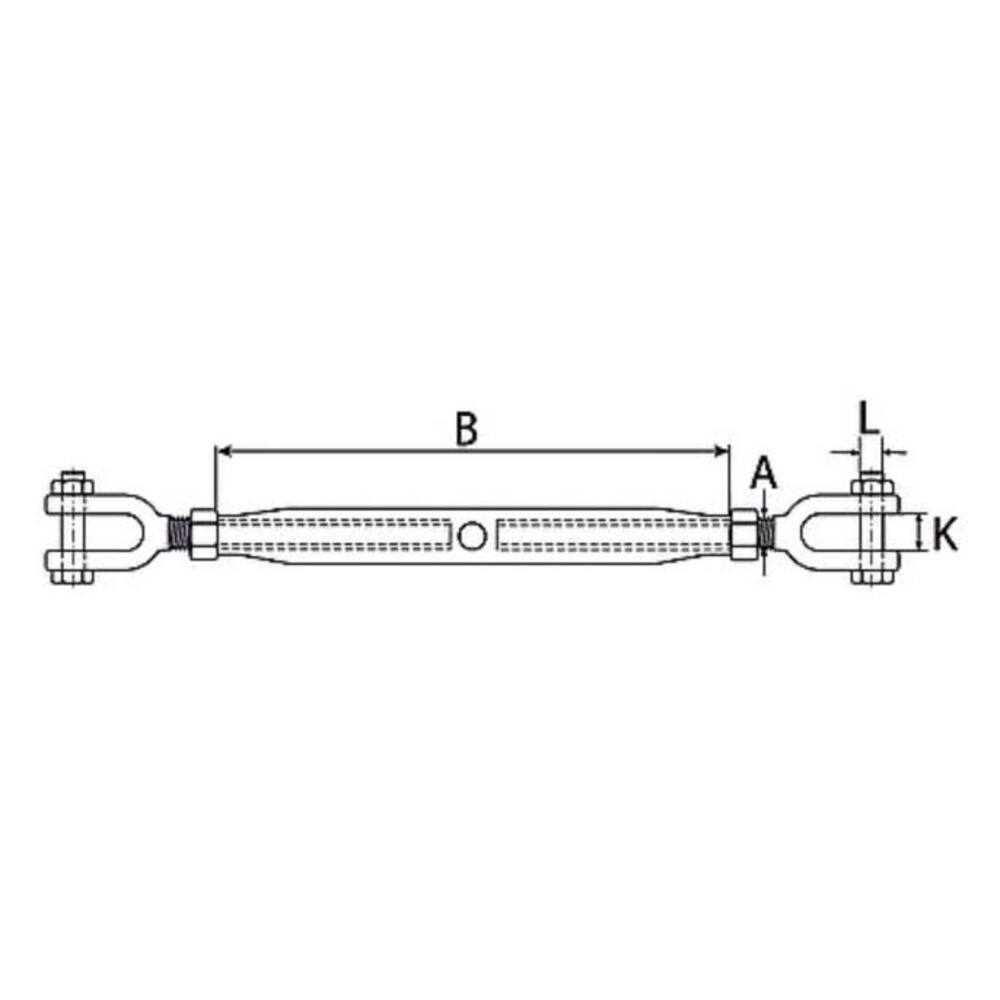

- Inside width (k): 21 mm
- Approx. weight: 2,200 gr
- Thread (a): M20
- Body length (b): 230 mm
- Material diameter (l): 16 mm
- Safe working load: 1,500 kg
-
