ID
1355832
$ 70.36
1-2 weeks delivery time
Diameter, mm:
- 3
- 4
- 5
- 6
Item:
- M8
- M10
- M6
The STA-LOK WT28 stainless steel turnbuckles are designed for 3–6 mm wire rope with M6–M10 threads, featuring a welded fork and swage stud configuration. With adjustment range from 137–260 mm and fork width from 9.5–12.0 mm, they provide reliable tensioning for marine rigging.
- Description
- Ask a Question
-

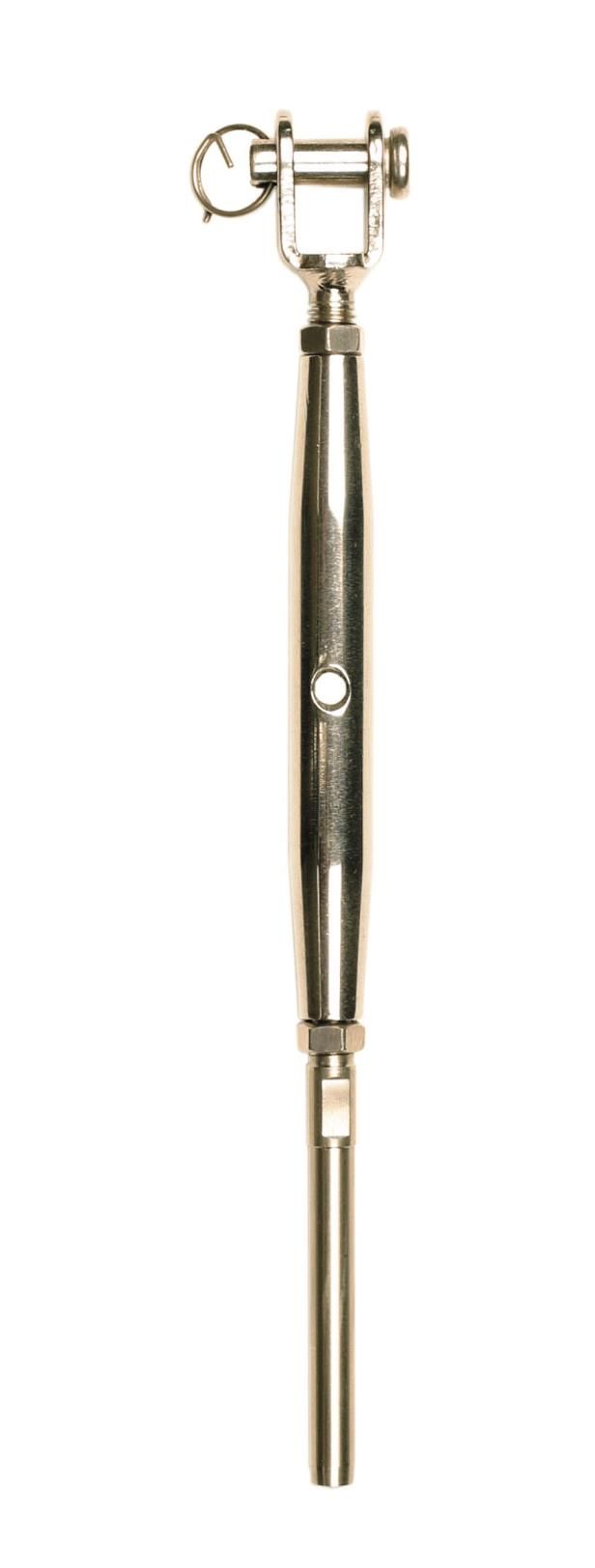

STA-LOK WT28 Stainless Steel Turnbuckle Welded Fork & Swage – for 3–6 mm Wire Rope
The STA-LOK WT28 Stainless Steel Turnbuckles are designed for adjustable tensioning in wire rope systems. Each unit features a welded fork at one end and a swage stud at the other, providing secure and versatile connection points.
Manufactured from polished stainless steel seamless tube, these turnbuckles ensure durability and corrosion resistance in marine environments. Suitable for wire sizes from 3 mm to 6 mm, they are commonly used in rigging, guard rails, and lifeline systems.
Key Features
- Stainless steel turnbuckle with welded fork and swage stud
- Manufactured from polished seamless stainless steel tube
- Designed for adjustable wire rope tensioning
- Corrosion-resistant for marine environments
- Supplied with nuts for installation
Technical Specifications
SKU Wire Size (MM) Thread Fully Open (MM) Fully Closed (MM) Fork Width (MM) Fork Pin (MM) WT28-03-M6 3 M6 207.0 137.0 9.5 6.0 WT28-04-M6 4 M6 211.0 141.0 9.5 6.0 WT28-04-M8 4 M8 245.0 167.0 11.0 8.0 WT28-05-M8 5 M8 245.0 167.0 11.0 8.0 WT28-05-M10 5 M10 260.0 180.0 12.0 10.0 WT28-06-M10 6 M10 260.0 180.0 12.0 10.0
Application
Suitable for marine rigging, guard rails, lifelines, and wire rope systems requiring adjustable tension and secure mechanical connections.
-
