ID
1299921
$ 14,648.65
1-2 weeks delivery time
-
+
The Harken 60.3STEP24H is an electric self-tailing Performa™ winch designed for effortless sail trimming. Its sandblasted drum is optimized for halyards and sheets using small-diameter, high-tech lines, and it operates with a simple button press. This winch is suitable for any sail size and weighs 11.7 kg, with a maximum line diameter of 16 mm.
- Description
- Ask a Question
-

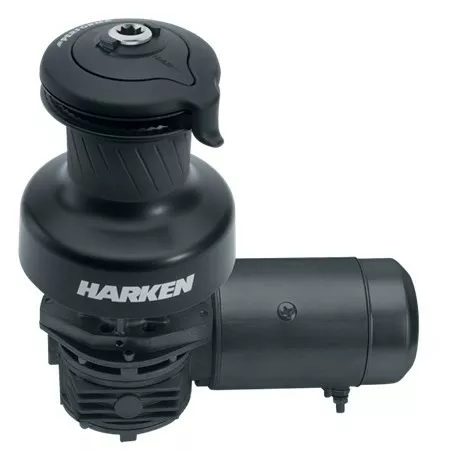

Harken 60.3STEP24H - Electric Self-Tailing Performa™ Winch 3 Speed, 24V, Horizontal 60.3STE Black

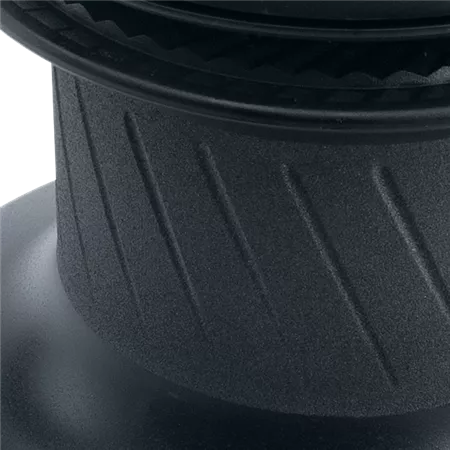

Experience effortless sail trimming with the Harken 60.3STEP24H electric winch. Its sandblasted Performa™ drum is engineered for optimal performance with halyards and sheets using small-diameter, high-tech lines. Simply press a button to control sails of any size.
- Weight: 11.7 kg / 25.8 lb
- Maximum line Ø: 16 mm / 5/8 in
- Minimum line Ø: 8 mm / 5/16 in
- Fasteners: M8 SH / 5/16 SH in
- Fastener circle: 204 mm / 8 in
- Number of fasteners: 6
- Height: 253 mm / 10 in
- E dimension: 69 mm / 2 3/4 in
- F dimension: 181 mm / 7 1/8 in
- Configuration: Self-tailing
- Speed: 3
- Drum Ø: 120 mm / 4 3/4 in
- Base Ø: 236 mm / 9 5/16 in
- Weight of Winch and Motor: 22.5 kg / 49.7 lb
- Motor weight: 10.8 kg / 23.9 lb
- Line entry height: 116 mm / 4 9/16 in
- Gear ratios: 2.2 / 4.8 / 14.4
- Power ratios: 9.2 / 20.3 / 61
- Racing disconnect rod: B60.3PDR
- G dimension: 244 mm / 9 5/8 in
- Item number: HKW60.3STEP24H
-
