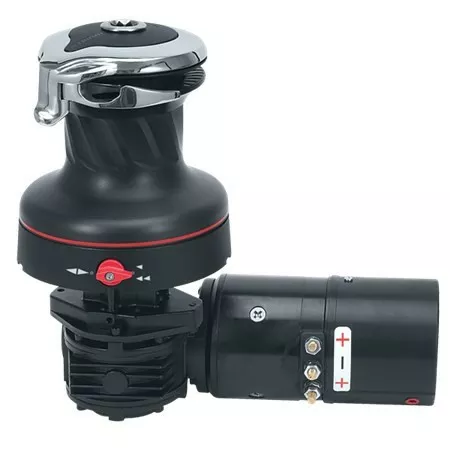

Harken 60RWA24H - Electric Self-Tailing Rewind™ Radial Aluminum Winch Reverse Speed, 24V 60.2ST Black

ID 1299927

$ 16,453.64

1-2 weeks delivery time

- +

Add to cart

The Harken 60RWA24H is an electric self-tailing Rewind™ radial aluminum winch designed for reverse speed, providing precise control over heavily loaded sails. It allows lines to be eased and trimmed in both directions while staying fully in the self-tailer. The rewind function is activated with a simple flip of the red knob, and the stainless steel spring-loaded arm ensures the line stays captive. This winch operates on a 24V system and weighs 22.1 kg, with a maximum line diameter of 16 mm.

Description
Ask a Question

Harken 60RWA24H - Electric Self-Tailing Rewind™ Radial Aluminum Winch Reverse Speed, 24V 60.2ST Black

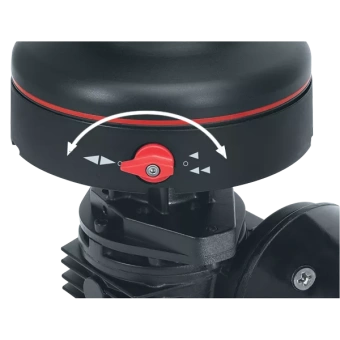

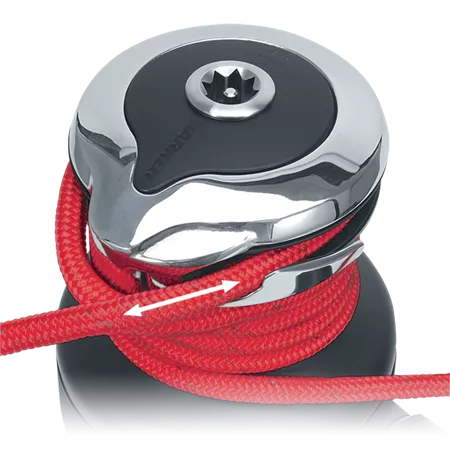

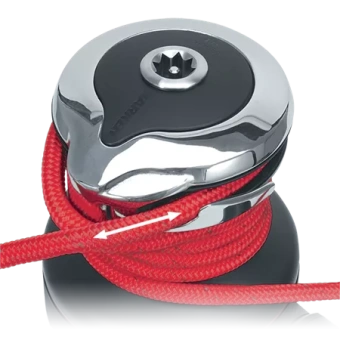

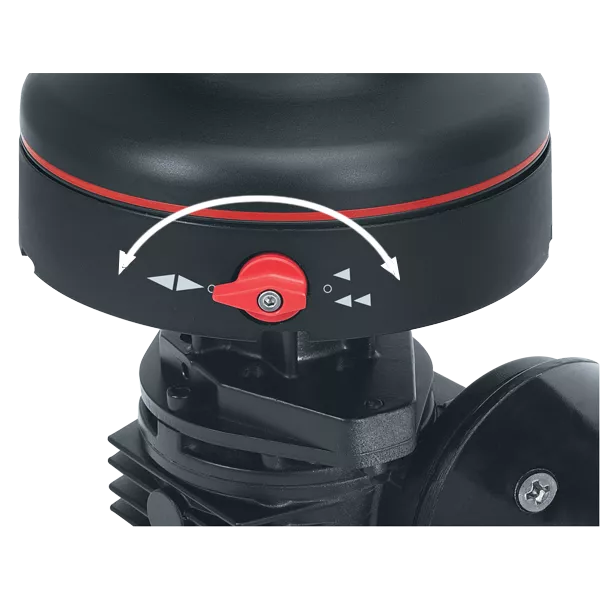

The Harken 60RWA24H is designed for sailors who need precise control over heavily loaded sails. This electric radial winch allows lines to be eased and trimmed in both directions while staying fully in the self-tailer. Its rewind function is activated with a simple flip of the red knob, and the stainless steel spring-loaded arm ensures the line stays captive, giving fingertip control for smooth sail adjustments.
- Weight: 22.1 kg / 48.7 lb
- Maximum line Ø: 16 mm / 5/8 in
- Minimum line Ø: 14 mm / 9/16 in
- Fasteners: M8 SH mm / 5/16 SH in, 6 fasteners
- Fastener circle: 204 mm / 8 in
- Height: 246 mm / 9 11/16 in
- E: 69 mm / 2 3/4 in
- F: 181 mm / 7 1/8 in
- G: 280 mm / 11 in
- Configuration: Self-tailing
- Speed: 2
- Drum Ø: 120 mm / 4 3/4 in
- Base Ø: 236 mm / 9 5/16 in
- Line entry height: 116 mm / 4 9/16 in
- Gear ratio: 4.80 / 14.40
- Power ratio: 20.30 / 61.00
- Voltage: 24V
- Material: Aluminum
- Available power: Electric horizontal 24V
- Item number: HKW60RWA24H
