ID
1299919
$ 12,648.35
1-2 weeks delivery time
-
+
The Harken 60.3STEA12H is an electric self-tailing radial aluminum winch that allows for effortless sail trimming at the touch of a button. Its drum is engineered with diagonal ribs for maximum grip and minimal wear, and the self-tailing feature enables efficient control by one crew member. This winch operates on a 12V system and weighs 11.7 kg, with a maximum line diameter of 16 mm.
- Description
- Ask a Question
-

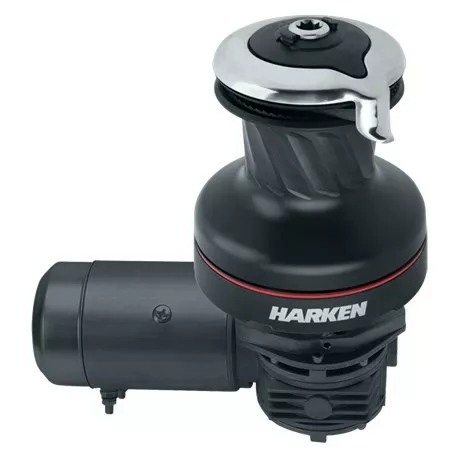

Harken 60.3STEA12H - Electric Self-Tailing Radial Aluminum Winch 3 Speed, 12V, Horizontal 60.3STE Black

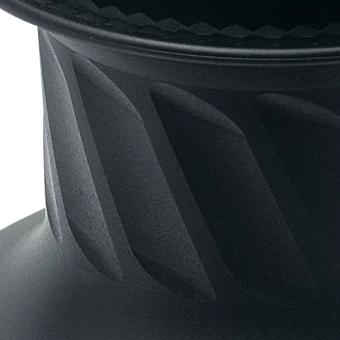

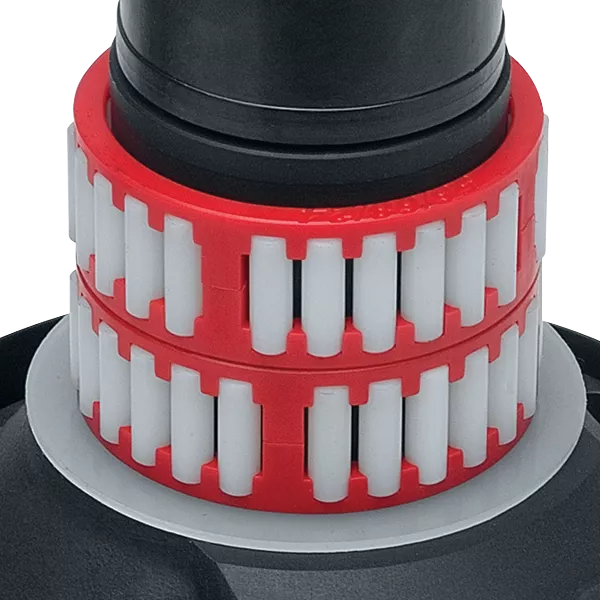

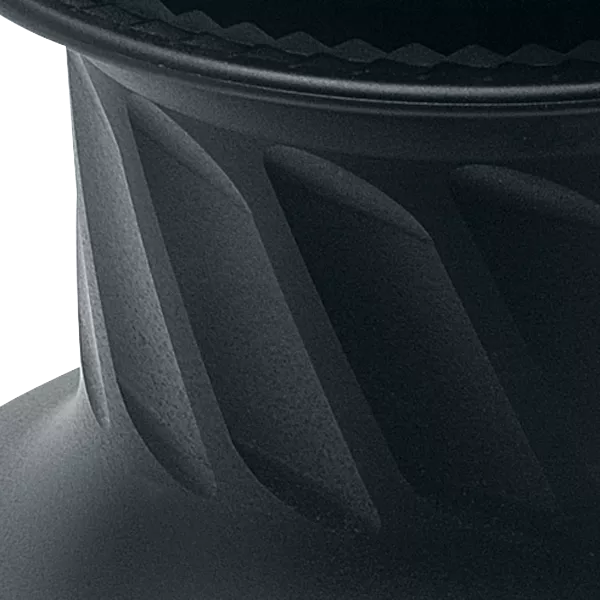

The Harken 60.3STEA12H radial electric winch allows effortless sail trimming at the touch of a button. Its drum is engineered with diagonal ribs, maximizing grip and minimizing line wear, while the self-tailing feature enables one crew member to control sails efficiently. High-strength composite roller bearings and bushings reduce friction, and all load-bearing gears and pins are crafted from 17-4 PH stainless steel for durability and corrosion resistance. The motor attaches directly to the drive shaft, providing a two-speed mechanical advantage, with a lower-power gear for rapid trimming and a higher-power gear for fine adjustments. Its efficient design reduces motor size without sacrificing performance.
- Weight: 11.7 kg / 25.8 lb
- Maximum line diameter: 16 mm / 5/8 in
- Minimum line diameter: 8 mm / 5/16 in
- Fasteners: M8 SH mm / 5/16 SH in
- Fastener circle: 204 mm / 8 in
- Number of fasteners: 6
- Height: 246 mm / 9 11/16 in
- Drum diameter: 120 mm / 4 3/4 in
- Base diameter: 236 mm / 9 5/16 in
- Line entry height: 116 mm / 4 9/16 in
- Configuration: Self-tailing
- Speed: 3
- Gear ratios: 2.2 / 4.8 / 14.4
- Power ratios: 9.2 / 20.3 / 61
- Voltage: 12V
- Material: Aluminum
- Weight of winch and motor: 22.5 kg / 49.7 lb
- Motor weight: 10.8 kg / 23.9 lb
- Available power: Electric horizontal 12V
- Dimensions E: 69 mm / 2 3/4 in
- Dimensions F: 181 mm / 7 1/8 in
- Dimensions G: 244 mm / 9 5/8 in
- Item number: HKW60.3STEA12H
-
