ID
1299920
$ 14,648.65
1-2 weeks delivery time
-
+

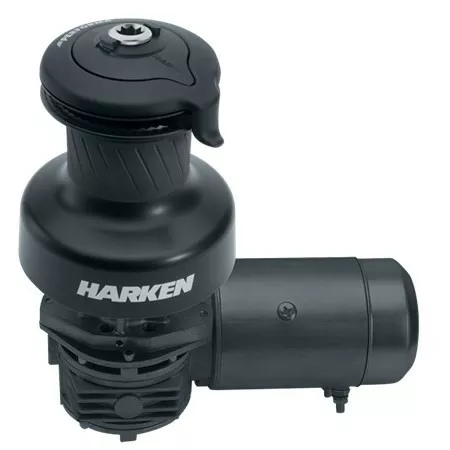

The Harken 60.3STEP12H is an electric self-tailing Performa™ winch featuring sandblasted drums for small-diameter high-tech lines. It offers three-speed performance and includes a self-tailing mechanism for one-person sail handling. Built for precision and durability, it weighs 11.7 kg and has a maximum line diameter of 16 mm.
- Description
- Ask a Question
-
Harken 60.3STEP12H - Electric Self-Tailing Performa™ Winch 3 Speed, 12V, Horizontal 60.3STE Black

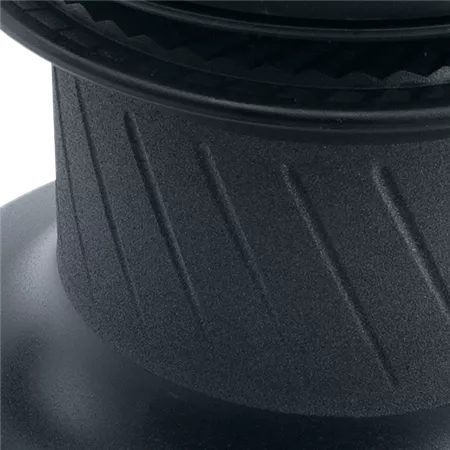

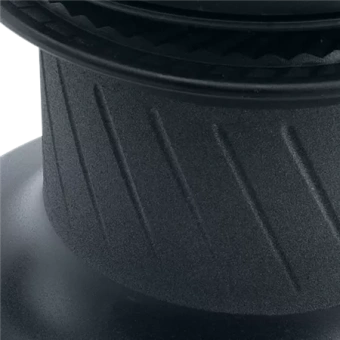

The Harken 60.3STEP12H Performa™ winch features sandblasted drums specifically designed for small-diameter high-tech lines used in halyard and sheeting applications. Its electric operation lets you trim any sail with ease. Built for precision, it includes a self-tailing mechanism for one-person sail handling and provides three-speed performance. The combination of strong materials and advanced design ensures durability and reliable operation under load.
- Weight: 11.7 kg / 25.8 lb
- Maximum line diameter: 16 mm / 5/8 in
- Minimum line diameter: 8 mm / 5/16 in
- Fasteners: M8 SH mm / 5/16 SH in
- Fastener circle: 204 mm / 8 in
- Number of fasteners: 6
- Height: 253 mm / 10 in
- Drum diameter: 120 mm / 4 3/4 in
- Base diameter: 236 mm / 9 5/16 in
- Line entry height: 116 mm / 4 9/16 in
- Configuration: Self-tailing
- Speed: 3
- Gear ratios: 2.2 / 4.8 / 14.4
- Power ratios: 9.2 / 20.3 / 61
- Weight of winch and motor: 22.5 kg / 49.7 lb
- Motor weight: 10.8 kg / 23.9 lb
- Racing disconnect rod: B60.3PDR
- Dimensions E: 69 mm / 2 3/4 in
- Dimensions F: 181 mm / 7 1/8 in
- Dimensions G: 244 mm / 9 5/8 in
- Item number: HKW60.3STEP12H
-
