Harken 46.2STEA12H - Electric Self-Tailing Radial Aluminum Winch 2 Speed, 12V, Horizontal 46.2STE Black

ID 1299872

$ 6,856.24

1-2 weeks delivery time

- +

Add to cart

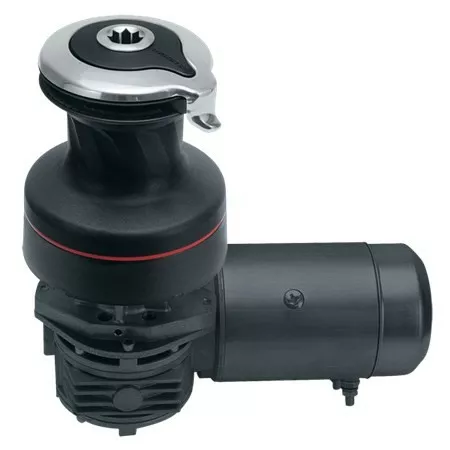

The Harken 46.2STEA12H is an electric self-tailing radial aluminum winch with motorized two-speed operation for effortless trimming. Featuring an aluminum drum with diagonal ribs, it combines easy single-handed sail handling, durable stainless steel gears, and weighs 5.2 kg for the winch alone or 14.9 kg with motor, operating at 12V horizontally.

Description
Ask a Question

Harken 46.2STEA12H - Electric Self-Tailing Radial Aluminum Winch 2 Speed, 12V, Horizontal 46.2STE Black

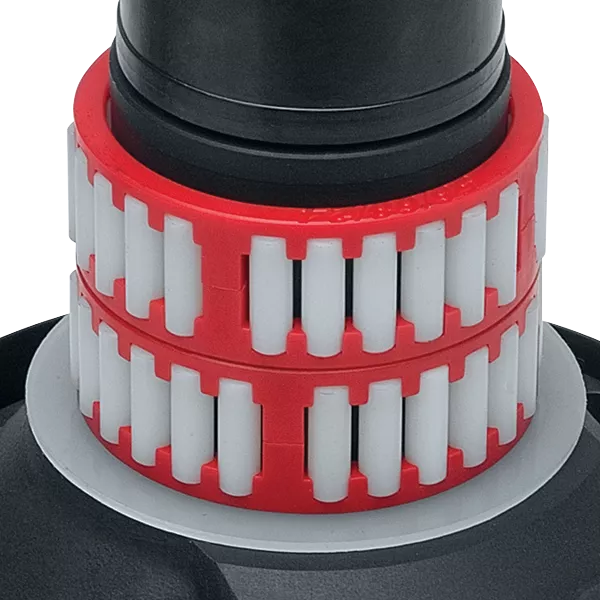

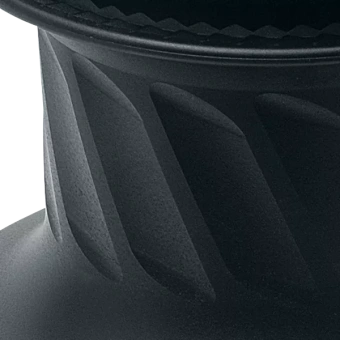

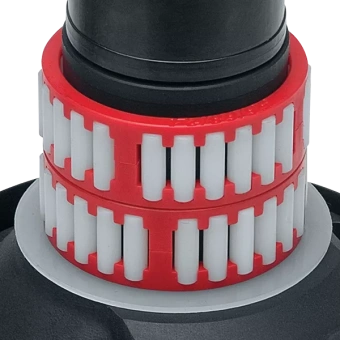

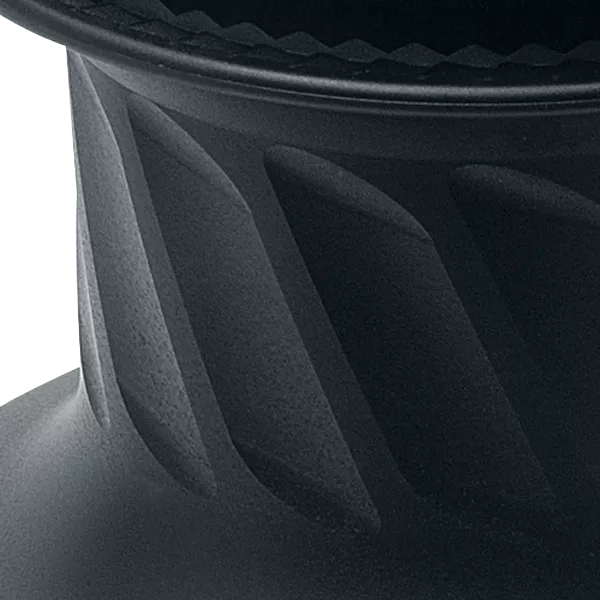

The Harken 46.2STEA12H combines high-performance radial winch design with electric operation for effortless trimming. The aluminum drum has diagonal ribs to maintain superior grip while reducing line wear. Self-tailing functionality allows easy sail handling by a single crew member. Motorized two-speed operation provides low-power trimming and high-power fine-tuning, with durable stainless steel gears and composite bearings.
- Weight: 5.2 kg / 11.5 lb
- Maximum line diameter: 14 mm / 9/16 in
- Minimum line diameter: 8 mm / 5/16 in
- Fasteners: M8 SH / 5/16 SH in
- Fastener circle: 150 mm / 5 7/8 in
- Height: 201 mm / 7 15/16 in
- Number of fasteners: 5
- Drum diameter: 100 mm / 3 7/8 in
- Base diameter: 184 mm / 7 1/4 in
- Line entry height: 90 mm / 3 9/16 in
- Weight of winch and motor: 14.9 kg / 32.8 lb
- Motor weight: 9.7 kg / 21.3 lb
- Gear ratios: 2.30 / 9.17
- Power ratios: 11.70 / 46.50
- Dimensions E: 43 mm / 1 3/4 in
- Dimensions F: 155 mm / 6 1/8 in
- Dimensions G: 227 mm / 8 7/8 in
- Hydraulic length: 234 mm
- Material: Aluminum
- Available power: Electric horizontal 12V
- Item number: HKW46.2STEA12H
