ID
1388961
$ 92.34
1-2 weeks delivery time
Diameter, mm:
- 8
- 10
- 12
- 14
- 16
- 18
- 20
- 24
- 28
- 32
- 36
- 40
- 44
- 48
Item:
- Roll 220 m
Orkava PE4 is a floating 4-strand twisted rope with core, made from 100% high-grade polyethylene and designed for inland navigation and vessel mooring. The range is supplied in 220 m lengths from Ø8 mm to Ø48 mm, with linear breaking loads from 5.8 kN to 186.7 kN. The rope has a tight weave, double-twined monofilament strand structure, high shock absorption, strong wear resistance and very low water absorption, with a blue-green color and blue ORKAVA marker tape.
- Description
- Ask a Question
-

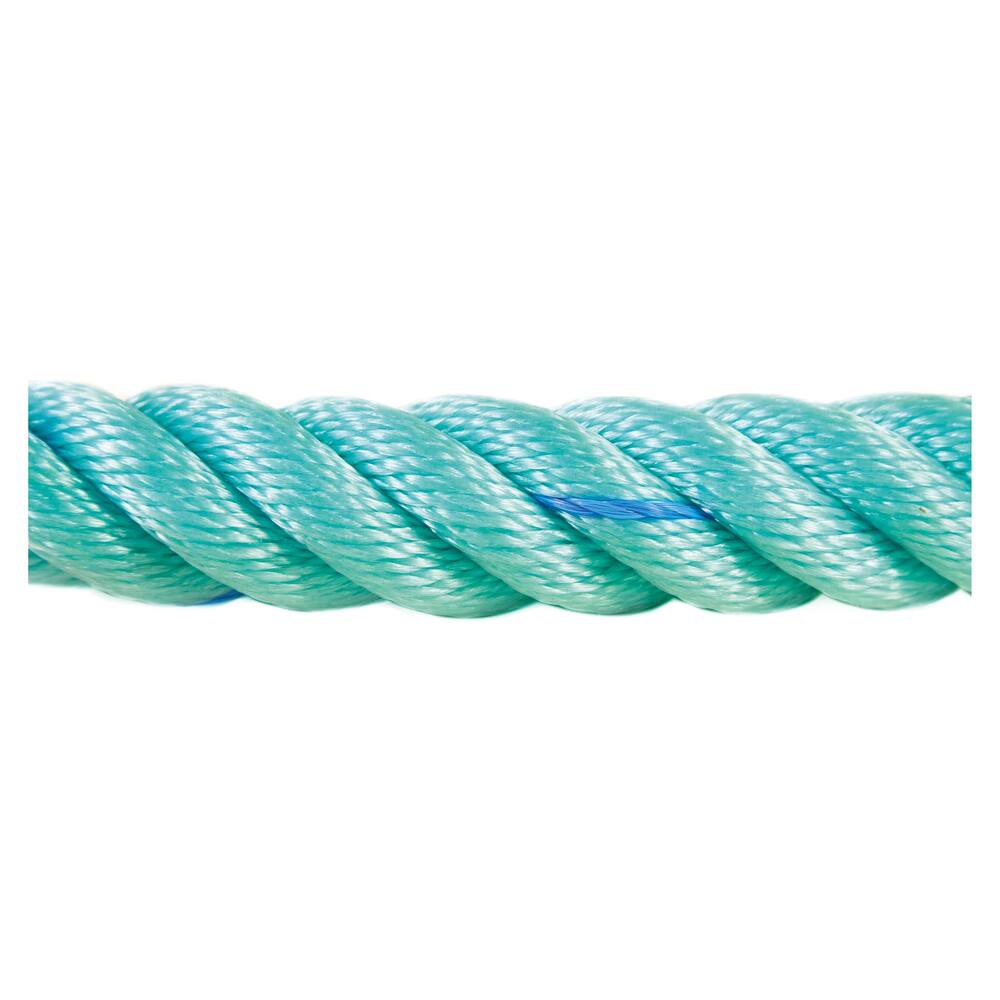

Orkava PE4 - 4-Strand Twisted Floating Polyethylene Mooring Rope Ø8-48 mm - 220 m
Orkava PE4 is a floating mooring rope designed for inland navigation. It is made from 100% high-grade polyethylene and features a 4-strand twisted construction with core, a tight weave and a double-twined monofilament strand structure.
The rope is designed to handle somewhat like steel wire without jamming and is intended for use with greased bollards when tying up vessels. It provides high shock absorption and high wear resistance. Due to its hydrophobic raw material and tight weave, the rope absorbs very little water, helping it remain flexible in winter conditions.
Technical Features
- Material: 100% high-grade polyethylene.
- Construction: 4-strand twisted with core.
- Strand structure: Double-twined monofilament.
- Weave: Tight.
- Type: Floating rope.
- Color: Blue-green with blue marker.
- Marker: ORKAVA guarantee tape twisted into the strand.
- High shock absorption.
- High wear resistance.
- Very low water absorption.
- Designed for inland navigation and vessel mooring.
- Do not use in a hawser basket; uncoil regularly.
Available Variants
Article Number Diameter Length Supply Weight per 100 / 220 m Linear Breaking Load Linear Breaking Load 01.14.008 8 mm 220 m Reel 3.1 / 6.8 kg 5.8 kN 0.59 t 01.14.010 10 mm 220 m Reel 4.8 / 10.6 kg 9.1 kN 0.93 t 01.14.012 12 mm 220 m Reel 6.9 / 15.2 kg 12.9 kN 1.31 t 01.14.214 14 mm 220 m Coil 9.3 / 20.5 kg 17.5 kN 1.78 t 01.14.216 16 mm 220 m Coil 12.2 / 26.9 kg 23.3 kN 2.38 t 01.14.218 18 mm 220 m Coil 15.4 / 33.9 kg 28.8 kN 2.94 t 01.14.220 20 mm 220 m Coil 19.1 / 42.0 kg 35.6 kN 3.63 t 01.14.224 24 mm 220 m Coil 27.3 / 60.0 kg 50.9 kN 5.19 t 01.14.228 28 mm 220 m Coil 38.7 / 85.0 kg 66.9 kN 6.83 t 01.14.232 32 mm 220 m Coil 50.0 / 110.0 kg 86.9 kN 8.84 t 01.14.236 36 mm 220 m Coil 63.6 / 140.0 kg 108.3 kN 11.05 t 01.14.240 40 mm 220 m Coil 75.9 / 167.0 kg 130.1 kN 13.26 t 01.14.244 44 mm 220 m Coil 94.5 / 208.0 kg 156.7 kN 15.98 t 01.14.248 48 mm 220 m Coil 108.2 / 238.0 kg 186.7 kN 19.04 t
Usage Notes
- Suitable for inland navigation.
- Designed for use with greased bollards when mooring vessels.
- Do not use in a hawser basket.
- Uncoil regularly.
Brand: Orkava
-
