ID
1395209
$ 17.61
1-2 weeks delivery time
-
+
Clamcleat CL244/S5 is a complete aluminium cleat and nylon clamp set for mounting on flag poles, windsurf booms and other tubular structures. The high-strength CL244 alloy cleat is secured to the CL134 clamp with two screws, while two rubber friction gaskets improve grip on bare metal surfaces and allow for small variations in tube diameter. The CL134 clamp is designed for tubes approximately 42–43 mm in diameter.
- Description
- Ask a Question
-
Clamcleat CL244/S5 Aluminium Cleat & Clamp Set for 3–6 mm Rope and 42–43 mm Tubes

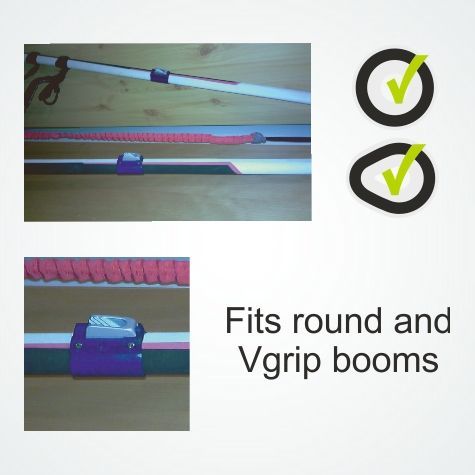

Clamcleat CL244/S5 is a complete clamp-mounted rope cleat set designed for installation on tubular structures such as windsurf booms, flag poles and similar fittings.

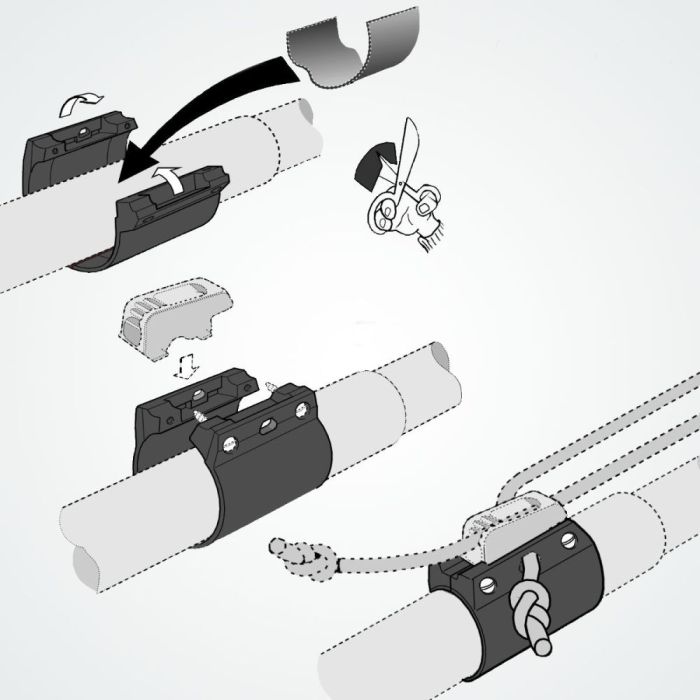

The set combines the high-strength aluminium CL244 cleat with the CL134 nylon clamp. The cleat is secured to the clamp using two screws to provide a compact and reliable mounting arrangement.
Two rubber friction gaskets are supplied to improve grip between the clamp and tube, particularly on bare metal surfaces. The rubber packing also allows the fitting to accommodate small variations in tube diameter.
The CL134 clamp used in this set is designed for tubes approximately 42–43 mm in diameter.
Product Features
- Brand: Clamcleat
- Model: CL244/S5
- Product type: Cleat and tube clamp set
- Cleat: CL244
- Clamp: CL134
- Cleat material: Aluminium
- Clamp material: Nylon
- Rope diameter: 3–6 mm
- Designed for tubes approximately 42–43 mm in diameter
- Cleat secured to clamp with 2 screws
- Rubber friction gaskets improve grip on the tube
- Suitable for bare metal poles and tubes
- Rubber packing allows minor tube diameter variations
- Suitable for windsurf booms
- Suitable for flag poles and tubular structures
Technical Specifications
Parameter Specification Model CL244/S5 Cleat CL244 Clamp CL134 Rope Diameter 3–6 mm Cleat Material Aluminium Clamp Material Nylon Tube Diameter Approx. 42–43 mm
Set Includes
- CL244 aluminium cleat
- CL134 nylon clamp
- 2 fixing screws
- 2 rubber friction gaskets
-
