Clamcleat CL244/S1 is a complete aluminium cleat and nylon clamp set for mounting on tubular structures such as windsurf booms, flag poles and similar fittings. The high-strength alloy cleat is secured to the CL115 clamp with two screws, while two rubber friction gaskets improve grip and allow for small variations in tube diameter. The CL115 clamp is designed for tubes approximately 36–37 mm in diameter.
- Description
- Ask a Question
-
Clamcleat CL244/S1 Aluminium Cleat & Clamp Set for 3–6 mm Rope and 36–37 mm Tubes

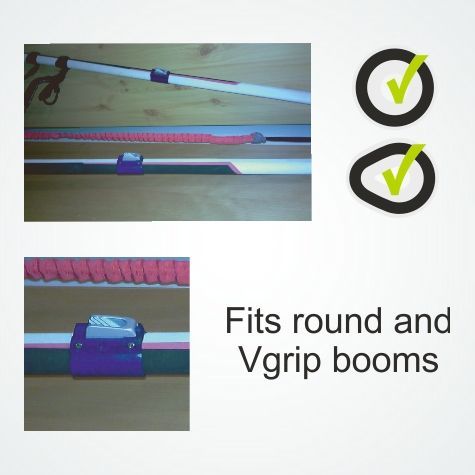

Clamcleat CL244/S1 is a complete clamp-mounted rope cleat set designed for installation on tubular structures such as windsurf booms, flag poles and similar applications.

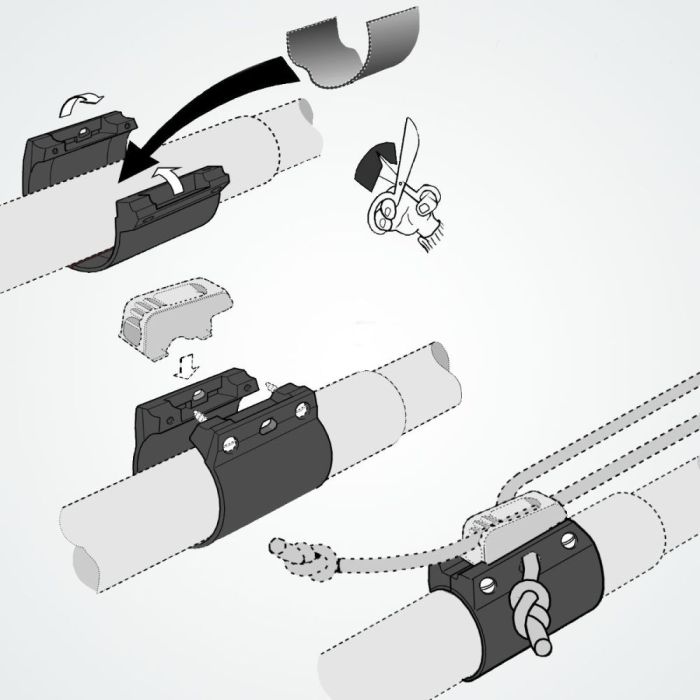

The set combines the high-strength aluminium CL244 cleat with the CL115 nylon clamp. The cleat is secured to the clamp using two screws, providing a compact and reliable mounting arrangement.
Two rubber friction gaskets are supplied to improve grip between the clamp and tube. The rubber packing also allows the fitting to accommodate small variations in tube diameter.
The CL115 clamp used in this set is designed for tubes approximately 36–37 mm in diameter.
Product Features
- Brand: Clamcleat
- Model: CL244/S1
- Product type: Cleat and tube clamp set
- Cleat: CL244
- Clamp: CL115
- Cleat material: Aluminium
- Clamp material: Nylon
- Rope diameter: 3–6 mm
- Designed for tubes approximately 36–37 mm in diameter
- Cleat secured to clamp with 2 screws
- Rubber friction gaskets improve grip on the tube
- Rubber packing allows minor tube diameter variations
- Suitable for windsurf booms
- Suitable for flag poles and tubular structures
Technical Specifications
Parameter Specification Model CL244/S1 Cleat CL244 Clamp CL115 Rope Diameter 3–6 mm Cleat Material Aluminium Clamp Material Nylon Tube Diameter Approx. 36–37 mm
Set Includes
- CL244 aluminium cleat
- CL115 nylon clamp
- 2 fixing screws
- 2 rubber friction gaskets
-
