ID
1394949
$ 2.49
1-2 weeks delivery time
-
+
Clamcleat CL802 is a polypropylene tapered pad designed to improve rope alignment when used with CL204, CL222 and CL222AN cleats. A single pad angles the cleat by 10°, while two pads can be stacked to create a 20° angle or reversed to form a riser block approximately 12 mm high. The pad measures 57 x 20 x 12 mm and uses 36 mm hole centres.
- Description
- Ask a Question
-
Clamcleat CL802 Tapered Pad for CL204, CL222 and CL222AN Cleats, 10° Angle

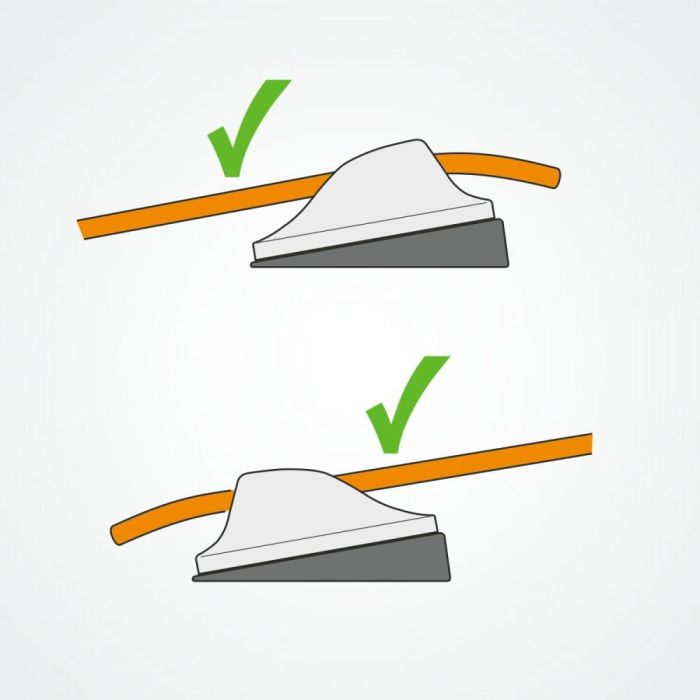

Clamcleat CL802 is a tapered mounting pad designed to improve rope alignment when installing compatible Clamcleat rope cleats.

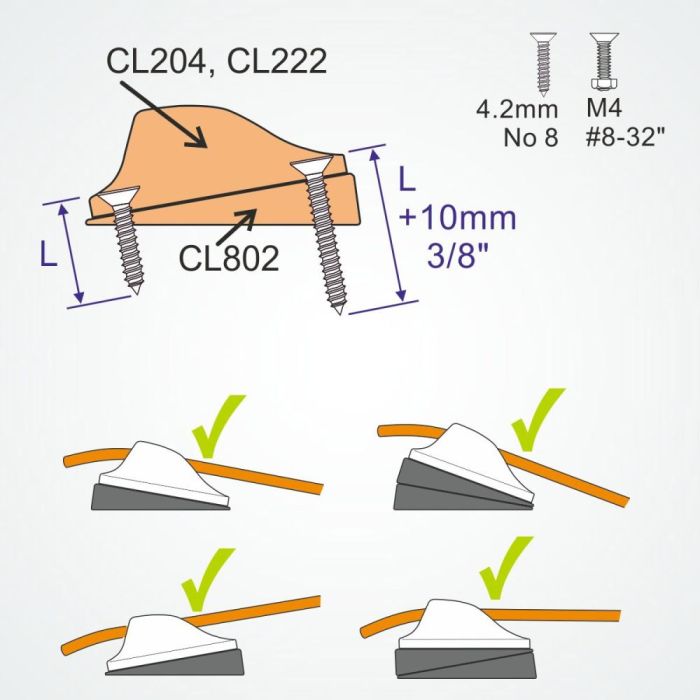

The pad fits beneath CL204, CL222 and CL222AN cleats and angles the cleat by 10°. Two pads can be stacked together to create an angle of up to 20°.
The pads can also be reversed and stacked to create a riser block approximately 12 mm high, providing additional mounting flexibility.

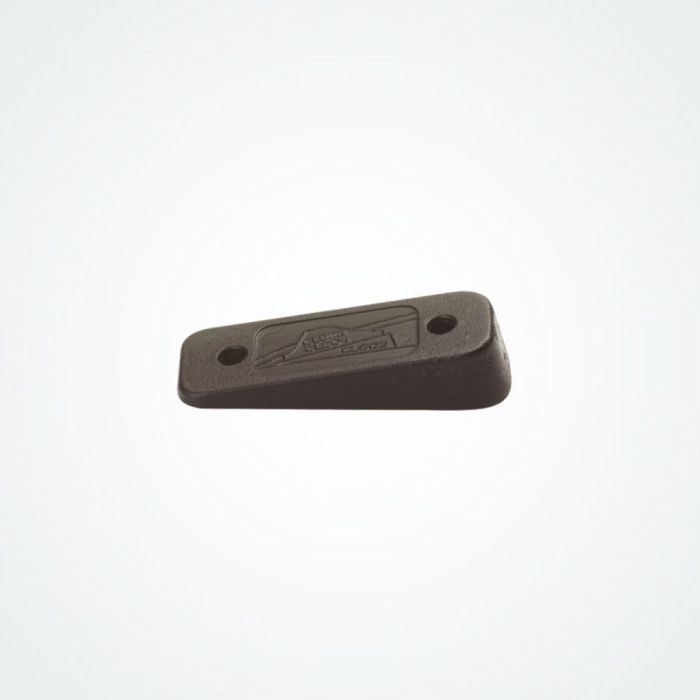

The CL802 is manufactured from polypropylene and has 36 mm mounting hole centres to match the compatible cleats.
Product Features
- Brand: Clamcleat
- Model: CL802
- Product type: Tapered mounting pad
- Compatible with CL204, CL222 and CL222AN cleats
- Designed to improve rope alignment
- Single-pad angle: 10°
- Two pads can be stacked for a 20° angle
- Can be reversed and stacked as a riser block
- Approximate riser height: 12 mm
- Material: Polypropylene
Technical Specifications

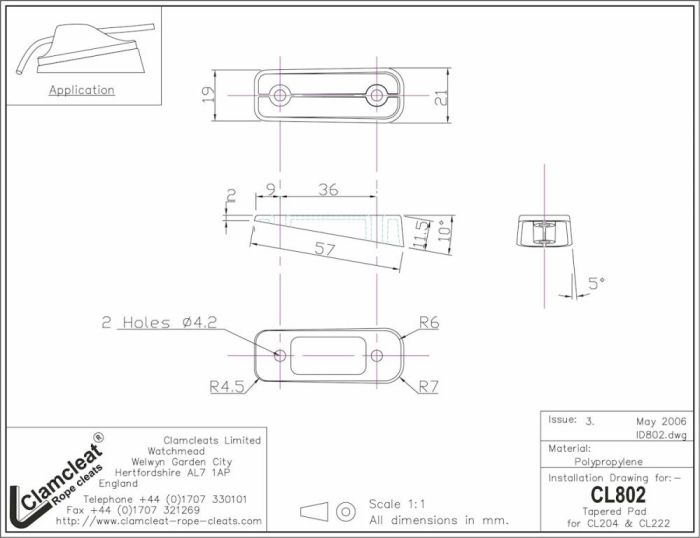

Parameter Specification Model CL802 Product Type Tapered mounting pad Compatibility CL204, CL222, CL222AN Material Polypropylene Angle per Pad 10° Maximum Stacked Angle 20° Hole Centres 36 mm Length 57 mm Width 20 mm Height 12 mm Bolt Size M4 Screw Size 4.2 mm / No. 8 Weight Approx. 4 g -
