Clamcleat CL265 Bar Cleats for 4–8 mm Rope and 25–31 mm Tubes

ID 1395211

$ 43.02

1-2 weeks delivery time

Color:

Silver
Hard Anodised

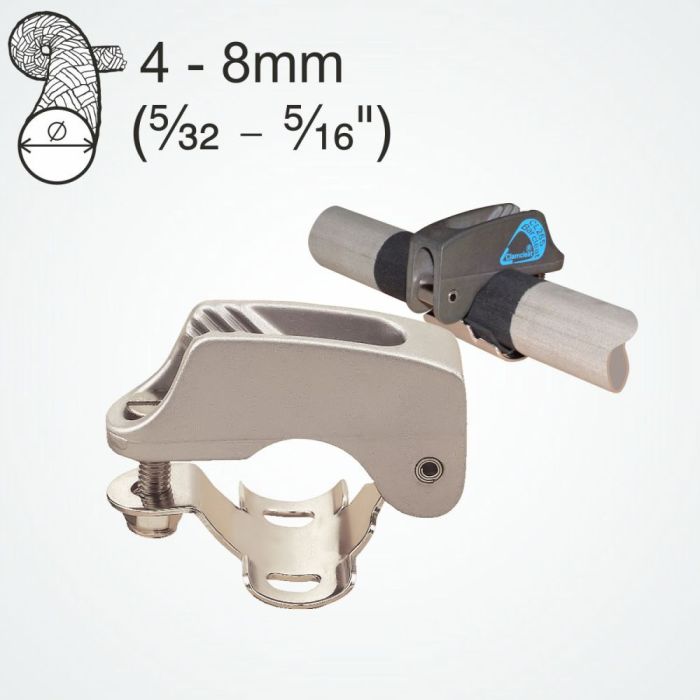

Clamcleat CL265 Bar Cleats are aluminium rope cleats designed for 4–8 mm (5/32–5/16") rope and mounting on bars or tubes from 25 to 31 mm in diameter. An integral fairlead guides the rope into the cleat from angles up to 90°, making the system suitable for kitesurf bars, flag poles and other tubular installations. Available as CL265 with a silver stove-enamel finish or CL265AN with a hard-anodised finish for increased wear resistance; the clamp strap and bolts are stainless steel.

Description
Ask a Question

Clamcleat CL265 Bar Cleats for 4–8 mm Rope and 25–31 mm Tubes, Silver or Hard Anodised Aluminium

Clamcleat CL265 is an aluminium bar cleat designed for ropes from 4 to 8 mm (5/32–5/16") and mounting on bars or tubes with diameters from 25 to 31 mm (1–1 3/16").

The integrated fairlead guides the rope smoothly into the cleat teeth and allows the line to approach from angles up to 90°. This makes the CL265 suitable for applications where the rope direction varies relative to the mounting tube.

The cleat is manufactured from lightweight aluminium and is secured around the tube using a stainless steel strap and bolts. Typical applications include kitesurf bars, flag poles and other tubular structures.

The range is available in two finishes: CL265 with a silver stove-enamel coating and CL265AN with a hard-anodised surface for increased wear resistance.

Product Features

Brand: Clamcleat
Series: CL265 Bar Cleat
Models: CL265 and CL265AN
Product type: Clamp-on bar cleat with integral fairlead
Material: Aluminium
Rope diameter: 4–8 mm (5/32–5/16")
Suitable tube diameter: 25–31 mm (1–1 3/16")
Integral fairlead for controlled rope guidance
Allows rope entry from angles up to 90°
Stainless steel strap and bolts
Suitable for kitesurf bars
Suitable for flag poles and tubular structures
CL265: silver stove-enamel finish
CL265AN: hard-anodised finish

Technical Specifications

Parameter	Specification
Rope Diameter	4–8 mm (5/32–5/16")
Material	Aluminium
Tube Diameter	25–31 mm (1–1 3/16")
Length	64 mm
Width	18 mm
Height	35 mm
Bolt Size	M6 / 1/4" (provided)
Weight	Approx. 60 g
Maximum Rope Entry Angle	Up to 90°

Available Variants

Model	Finish	Rope Diameter	Tube Diameter
CL265	Silver stove enamel	4–8 mm	25–31 mm
CL265AN	Hard anodised	4–8 mm	25–31 mm
