ID
1394987
$ 19.05
1-2 weeks delivery time
-
+
Clamcleat PT230SSE is a stainless steel rope guide designed for CL230 and CL253 cleats, particularly when rigged 1:1. It helps guide 3–6 mm (1/8–1/4") rope and makes rope release easier, making it especially useful for dinghy trapeze applications. The guide measures 20 x 14 x 3.5 mm and weighs approximately 3.2 g.
- Description
- Ask a Question
-
Clamcleat PT230SSE Stainless Steel Rope Guide for CL230 & CL253, for 3–6 mm Rope

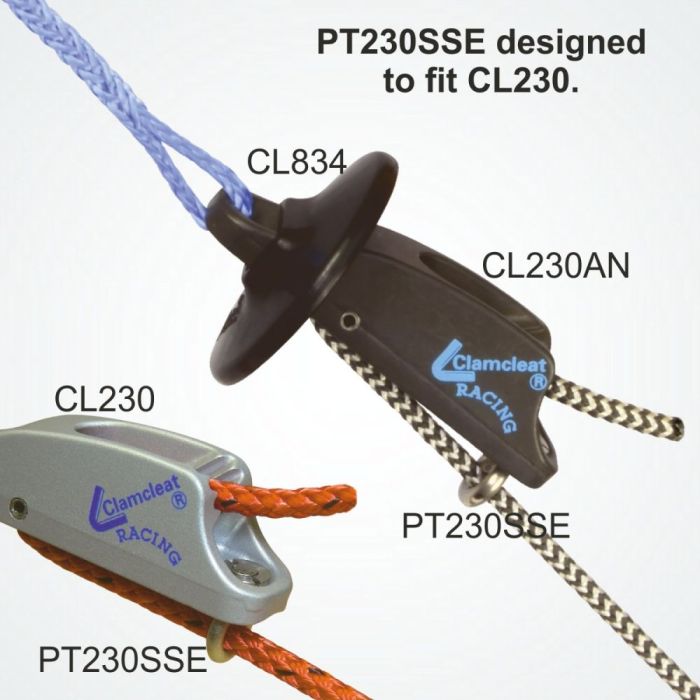

Clamcleat PT230SSE is a stainless steel rope guide designed for use with CL230 and CL253 cleats, particularly in 1:1 rigging arrangements.

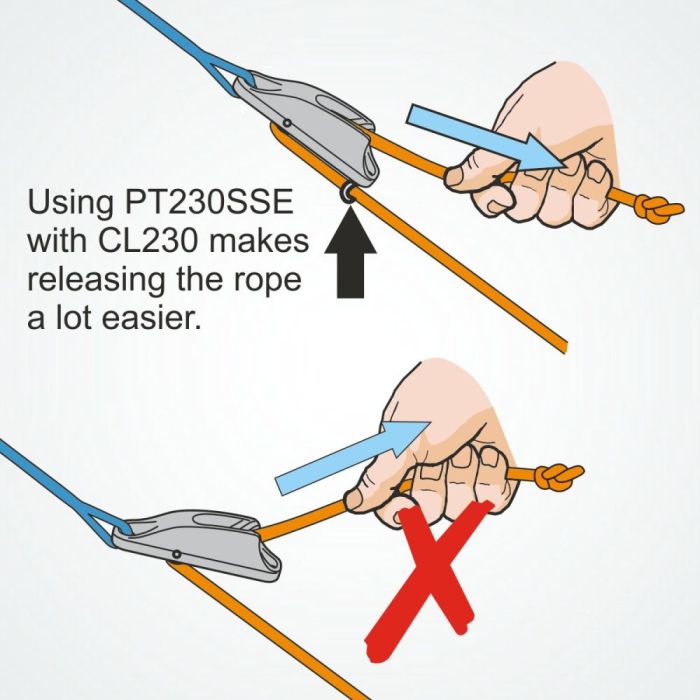

The eye guides the rope into the cleat and helps make rope release easier. It is suitable for ropes from 3 to 6 mm (1/8–1/4") and is particularly useful in dinghy trapeze systems.

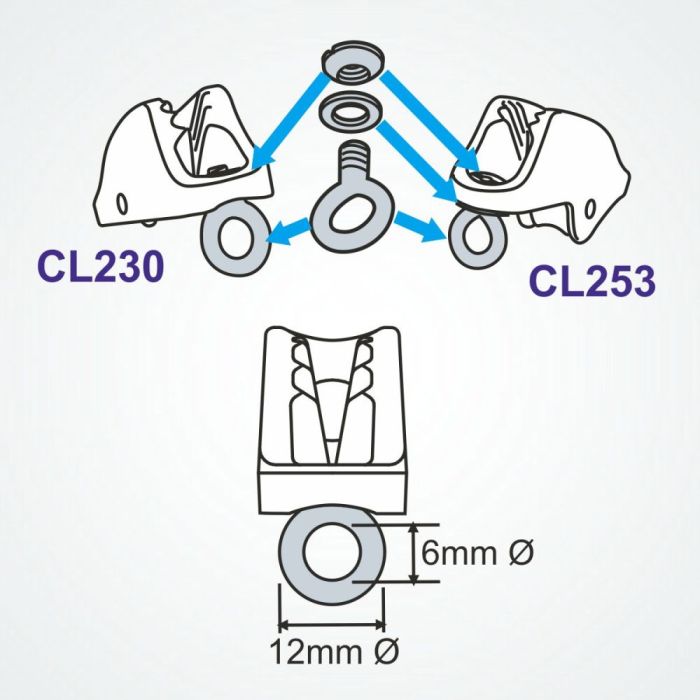

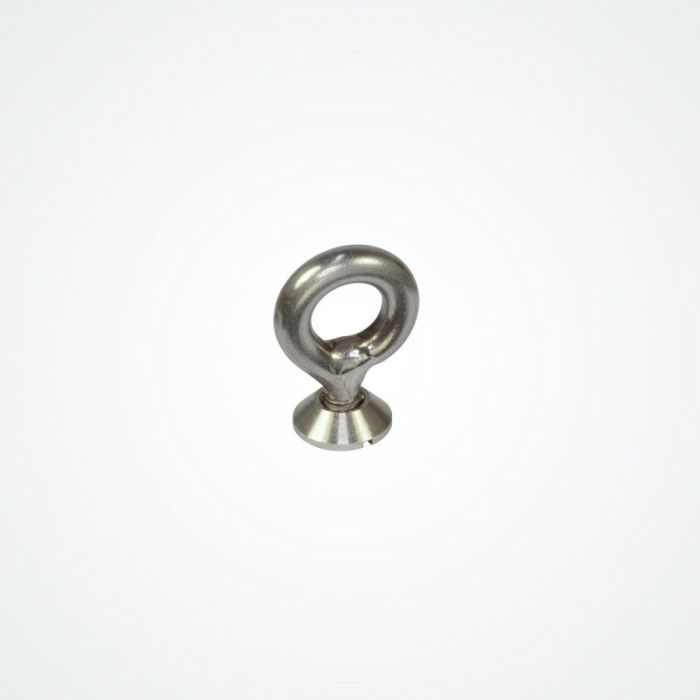

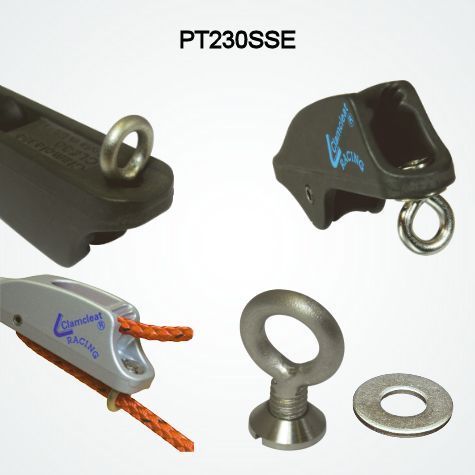

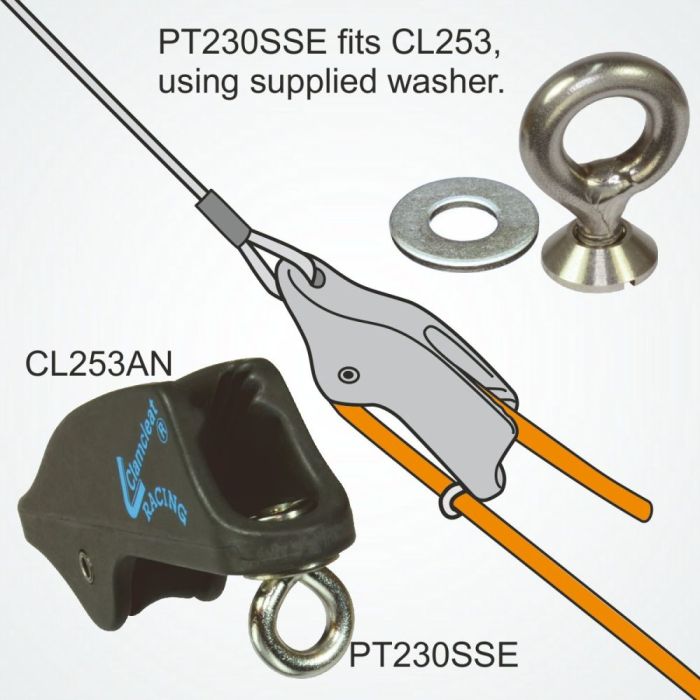

The PT230SSE is supplied as an eyebolt-style guide with nut and washer. A thread-locking compound such as Loctite is recommended during installation to ensure a secure and permanent fit.
Product Features
- Brand: Clamcleat
- Model: PT230SSE
- Product type: Rope guide / stainless steel eye
- Compatible with CL230 and CL253 cleats
- Designed especially for 1:1 rigging
- Suitable rope diameter: 3–6 mm (1/8–1/4")
- Helps improve rope guidance
- Helps make rope release easier
- Recommended for dinghy trapeze applications
- Material: Stainless steel
- Supplied with nut and washer
- Thread-locking compound recommended for installation
Technical Specifications
Parameter Specification Model PT230SSE Item Number CLPT230SSE Product Type Rope guide / eyebolt Compatibility CL230 / CL253 Rope Diameter 3–6 mm (1/8–1/4") Material Stainless steel Length 20 mm Width 14 mm Height 3.5 mm Weight Approx. 3.2 g Included Eyebolt, nut and washer -
