ID
1360938
$ 51.14
1-2 weeks delivery time
-
+

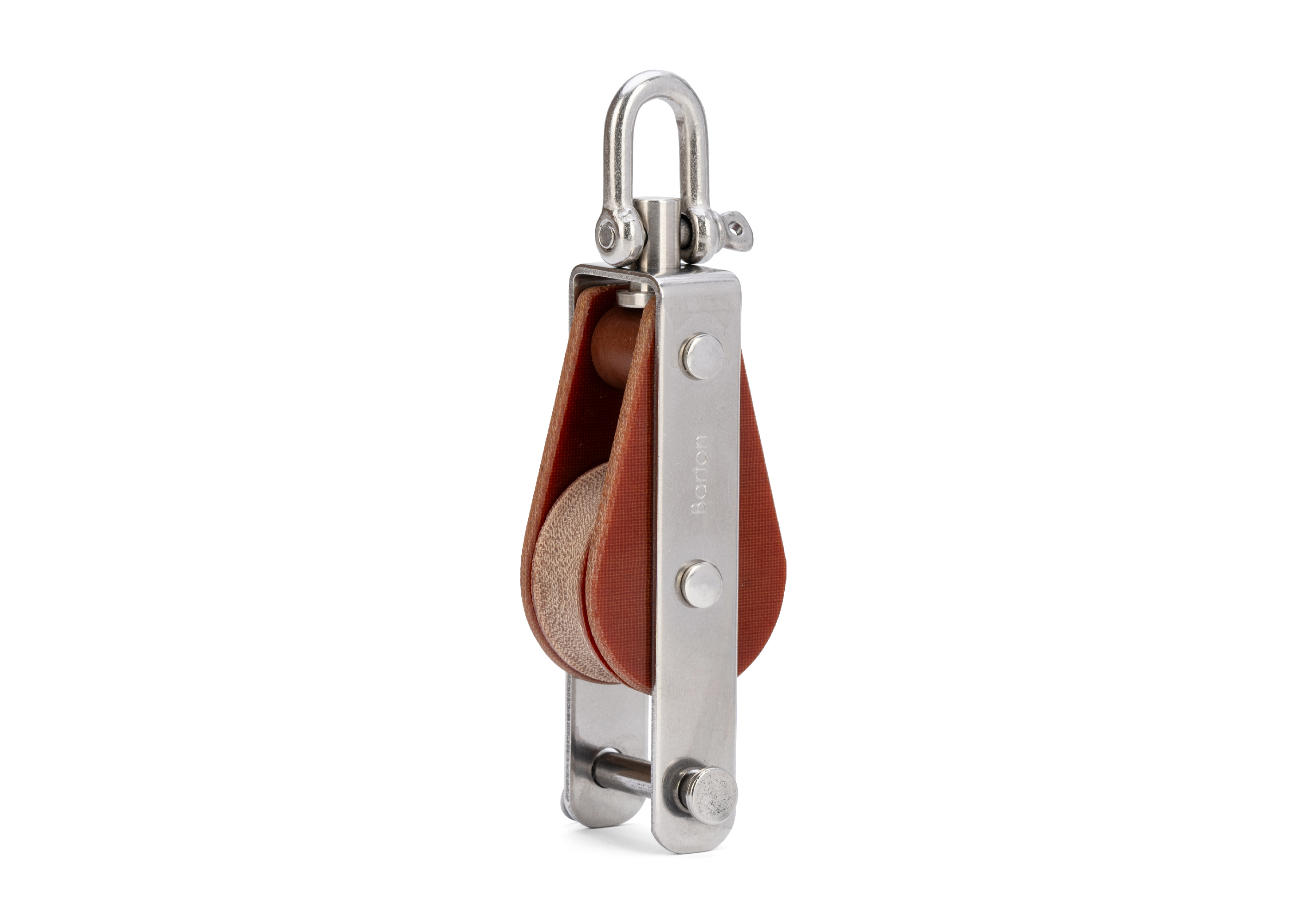

The Barton T01131 is a 30 mm single swivel block with becket from the TUPHblox range, manufactured from Tufnol phenolic laminate with brass bearings and 316 stainless steel fittings. It provides durable low-friction performance with a working load of 350 kg and break load of 700 kg, suitable for ropes up to 10 mm and systems requiring rotation with fixed line termination.
- Description
- Ask a Question
-
Barton T01131 – TUPHblox Single Swivel Block with Becket 30mm, Brass Bearing, Max Rope 10mm
The Barton T01131 TUPHblox Single Swivel Block with Becket is part of the durable and lightweight TUPHblox range, engineered for marine, industrial, and specialist applications. Manufactured from Tufnol phenolic resin laminate with cotton reinforcement, it delivers excellent strength, durability, and resistance to harsh environments.
The block runs on brass bearings for smooth and reliable operation, while 316 marine grade stainless steel bindings ensure structural integrity and corrosion resistance. The swivel head allows free rotation under load, reducing line twist and ensuring optimal alignment, while the integrated becket enables secure rope termination in compact purchase systems.
Tufnol construction provides non-conductive properties, making this block suitable for industrial environments, including explosive zones and hot air balloon systems. The laminated and heat-compressed structure ensures long service life, high durability, and excellent resistance to UV exposure and weathering.
Key Features
- 30 mm single sheave block with swivel head and becket
- Tufnol laminate construction for strength and durability
- Brass bearing system for smooth operation
- 316 stainless steel fittings for corrosion resistance
- Swivel for automatic alignment and reduced line twist
- Becket for fixed line termination
- Non-conductive material for industrial applications
- Lightweight and compact design
Technical Specifications
Part Number T01131 Block Type Single Swivel Block + Becket Series TUPHblox Sheave Diameter 30 mm (1 3/16") Bearing Type Brass Bearing Material Tufnol laminate with stainless steel and brass components Max Rope Diameter 10 mm (3/8") Safe Working Load (SWL) 350 kg (771 lbs) Break Load 700 kg (1543 lbs)
Applications
- Dynamic purchase systems with fixed termination
- Control and trimming systems
- Light-to-medium duty marine rigging
- Industrial and non-conductive environments
- General-purpose line handling
The Barton TUPHblox blocks combine compact design, durability, and flexibility, delivering reliable performance in applications where smooth rotation and secure line control are essential.
-
