The Barton T02131 is a 35 mm single swivel block with becket from the TUPHblox range, manufactured from Tufnol phenolic laminate with brass bearings and 316 stainless steel fittings. Weighing 89 g, it provides durable low-friction performance with a working load of 370 kg and break load of 740 kg, suitable for ropes up to 12 mm and systems requiring rotation with fixed line termination.
- Description
- Ask a Question
-

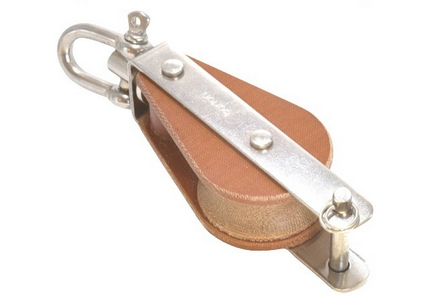

Barton T02131 – TUPHblox Single Swivel Block with Becket 35mm, Brass Bearing, Max Rope 12mm
The Barton T02131 TUPHblox Single Swivel Block with Becket is part of the robust and lightweight TUPHblox range, engineered for marine, industrial, and specialist applications. Manufactured from Tufnol phenolic resin laminate with cotton reinforcement, it delivers excellent strength, durability, and resistance to demanding environments.
The block runs on brass bearings for smooth and reliable operation, while 316 marine grade stainless steel bindings ensure structural strength and corrosion resistance. The swivel head allows free rotation under load, reducing line twist and improving alignment, while the integrated becket enables secure rope termination in purchase systems.
Tufnol construction provides non-conductive properties, making this block suitable for industrial environments, including explosive zones and hot air balloon systems. The laminated and heat-compressed structure ensures long service life, high durability, and excellent resistance to UV exposure and weathering.
Key Features
- 35 mm single sheave block with swivel head and becket
- Tufnol laminate construction for strength and durability
- Brass bearing system for smooth operation
- 316 stainless steel fittings for corrosion resistance
- Swivel for automatic alignment and reduced line twist
- Becket for fixed line termination
- Non-conductive material for industrial applications
- Compact and lightweight design – 89 g
Technical Specifications
Part Number T02131 Block Type Single Swivel Block + Becket Series TUPHblox Sheave Diameter 35 mm (1 3/8") Bearing Type Brass Bearing Material Tufnol laminate with stainless steel and brass components Max Rope Diameter 12 mm (1/2") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Weight 89 g
Applications
- Dynamic purchase systems with fixed termination
- Control and trimming systems
- Light-to-medium duty marine rigging
- Industrial and non-conductive environments
- General-purpose line handling
The Barton TUPHblox blocks combine durability, flexibility, and reliable performance, making them ideal for applications where smooth rotation and secure line control are essential.
-
