ID
1360967
$ 87.99
1-2 weeks delivery time
-
+
Barton T04130 – TUPHblox Single Swivel Block 58mm, Brass Bearing, Max Rope 14mm
- Description
- Ask a Question
-

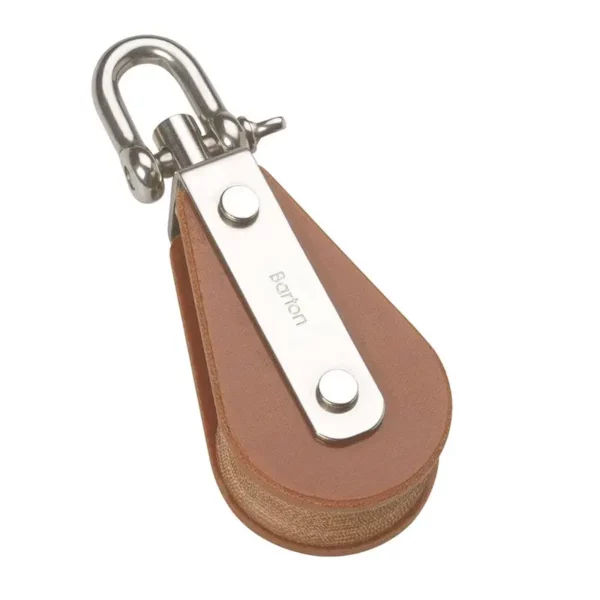

Barton T04130 – TUPHblox Single Swivel Block 58mm, Brass Bearing, Max Rope 14mm
The Barton T04130 TUPHblox Single Swivel Block is part of the heavy-duty TUPHblox range, engineered for marine, industrial, and specialist environments. Manufactured from Tufnol phenolic resin laminate with cotton reinforcement, it delivers excellent strength, durability, and resistance to harsh operating conditions.
The block runs on brass bearings for smooth and reliable operation, while 316 marine grade stainless steel bindings ensure corrosion resistance and structural integrity. The swivel head allows free rotation under load, reducing line twist and improving alignment in dynamic rigging systems.
Tufnol construction provides non-conductive properties, making this block ideal for industrial environments, including explosive zones and hot air balloon systems. The laminated structure ensures long service life, high durability, and excellent resistance to UV exposure and weathering.
Key Features
- 58 mm single sheave block with swivel head
- Tufnol laminate construction for strength and durability
- Brass bearing system for smooth operation
- 316 stainless steel fittings for corrosion resistance
- Swivel for automatic alignment and reduced line twist
- Non-conductive material for industrial applications
- Designed for medium to high load applications
Technical Specifications
Part Number T04130 Block Type Single Swivel Block Series TUPHblox Sheave Diameter 58 mm (2 9/32") Bearing Type Brass Bearing Material Tufnol laminate with stainless steel and brass components Max Rope Diameter 14 mm (7/16") Safe Working Load (SWL) 630 kg (1385 lbs) Break Load 1260 kg (2770 lbs)
Applications
- Dynamic rigging systems requiring rotation
- Control and trimming systems
- Medium to high-load marine applications
- Industrial and non-conductive environments
- General-purpose line handling
The Barton TUPHblox blocks combine strength, durability, and flexibility, delivering reliable performance in demanding applications where smooth rotation and efficient load handling are essential.
-
