ID
1360942
$ 54.71
1-2 weeks delivery time
-
+

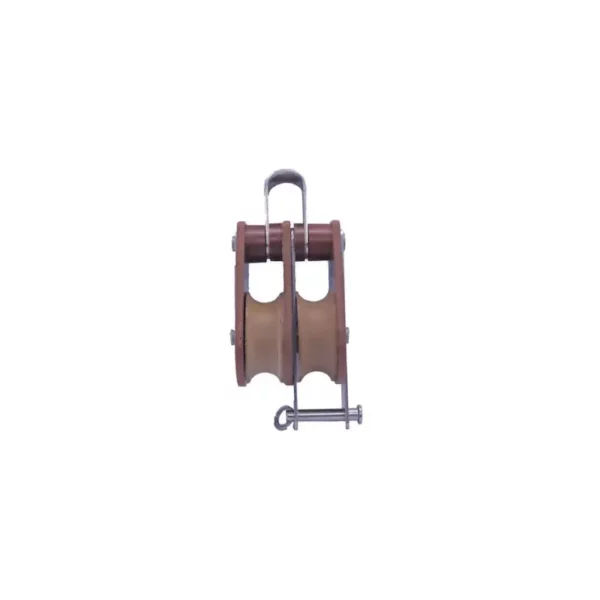

The Barton T01211 is a TUPHblox double bow block with becket and two 30 mm sheaves, designed for ropes up to 10 mm. Manufactured from Tufnol phenolic laminate with 316 stainless steel bindings and brass bearings, it delivers durable low-friction performance and secure rope termination. With a working load of 350 kg and break load of 700 kg, it is ideal for compact purchase systems requiring fixed line attachment.
- Description
- Ask a Question
-
Barton T01211 – Tuphblox Double Bow Block with Becket 30mm, Plain Bearing, 2x Ø30mm Sheaves, Max Rope 10mm
The Barton T01211 TUPHblox Double Bow Block with Becket features two 30 mm sheaves and an integrated becket, allowing secure rope termination in efficient purchase systems. The bow attachment enables flexible connection using either rope or shackle, making it suitable for a wide range of rigging applications.
Constructed from Tufnol phenolic resin laminate with cotton reinforcement, this block offers high strength, low weight, and excellent resistance to wear and environmental conditions. Combined with 316 stainless steel bindings and brass bearings, it ensures smooth, reliable operation under sustained load.
Key Features
- Double sheave block with integrated becket for rope termination
- Bow attachment for versatile rope or shackle connection
- Tufnol construction – strong, lightweight, and weather-resistant
- 316 stainless steel bindings for corrosion resistance
- Brass bearing system for smooth and consistent operation
- Suitable for rope systems and compatible with wire applications
Technical Specifications
Part Number T01211 Block Type Double Bow + Becket Series TUPHblox (Tufnol Blocks) Sheave Diameter 2 × 30 mm (1 3/16") Bearing Type Plain Bearing (Brass) Number of Sheaves Double Max Rope Diameter 10 mm (3/8") Safe Working Load (SWL) 350 kg (771 lbs) Break Load 700 kg (1543 lbs) Materials Tufnol (phenolic laminate), 316 stainless steel, brass
Applications
- Purchase systems requiring fixed rope termination
- Control and trimming systems
- Classic and heritage yacht rigging
- Industrial and non-conductive environments
The Barton TUPHblox double blocks combine traditional materials with modern engineering, delivering reliable strength, smooth performance, and long-term durability in marine and industrial applications.
-
