ID
1360952
$ 58.27
1-2 weeks delivery time
-
+
The Barton T02211 is a TUPHblox double bow block with becket and two 35 mm sheaves, designed for ropes up to 12 mm. Manufactured from Tufnol phenolic laminate with 316 stainless steel bindings and brass bearings, it provides durable low-friction performance and secure rope termination. With a working load of 370 kg and break load of 740 kg, it is ideal for compact purchase systems requiring fixed line attachment.
- Description
- Ask a Question
-

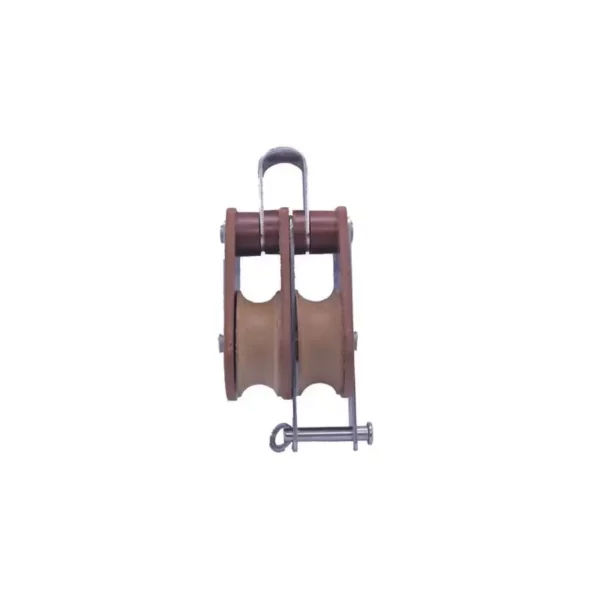

Barton T02211 – Tuphblox Double Bow Block with Becket 35mm, Plain Bearing, 2x Ø35mm Sheaves, Max Rope 12mm
The Barton T02211 TUPHblox Double Bow Block with Becket features two 35 mm sheaves and an integrated becket, allowing secure rope termination in efficient purchase systems. The bow attachment provides flexible connection using either rope or shackle, making it suitable for a wide range of rigging configurations.
Constructed from Tufnol phenolic resin laminate with cotton reinforcement, this block delivers excellent strength, low weight, and resistance to environmental conditions. Combined with 316 stainless steel bindings and brass bearings, it ensures smooth and reliable operation under sustained loads in marine and industrial environments.
Key Features
- Double sheave block with integrated becket for rope termination
- Bow attachment for versatile rope or shackle connection
- Tufnol construction – strong, lightweight, and non-conductive
- 316 stainless steel bindings for corrosion resistance
- Brass bearing system for smooth and consistent operation
- Suitable for rope systems and compatible with wire applications
Technical Specifications
Part Number T02211 Block Type Double Bow + Becket Series TUPHblox (Tufnol Blocks) Sheave Diameter 2 × 35 mm (1 3/8") Bearing Type Plain Bearing (Brass) Number of Sheaves Double Max Rope Diameter 12 mm (1/2") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Weight 125 g Materials Tufnol (phenolic laminate), 316 stainless steel, brass
Applications
- Purchase systems requiring fixed rope termination
- Control and trimming systems
- Classic and heritage yacht rigging
- Industrial and non-conductive environments
The Barton TUPHblox double blocks combine traditional materials with modern engineering, delivering reliable strength, smooth operation, and long-term durability in demanding marine and industrial applications.
-
