ID
1360951
$ 51.82
1-2 weeks delivery time
-
+

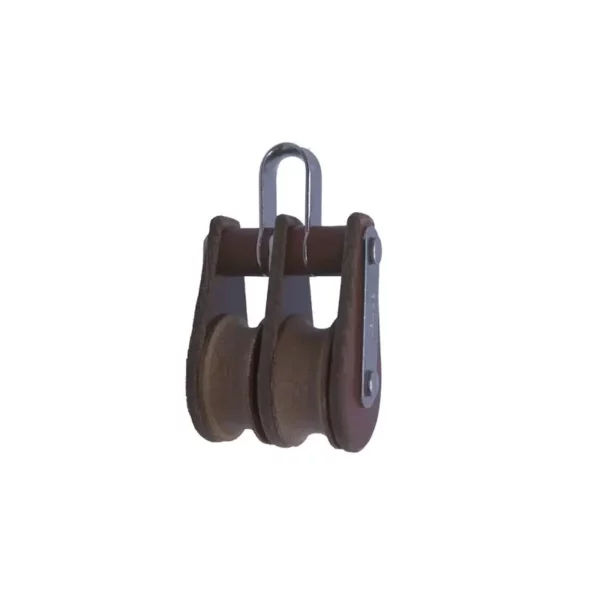

The Barton T02210 is a TUPHblox double bow block with two 35 mm sheaves, designed for ropes up to 12 mm. Manufactured from Tufnol phenolic laminate with 316 stainless steel bindings and brass bearings, it delivers durable low-friction performance and flexible attachment options. With a working load of 370 kg and break load of 740 kg, it is suitable for compact purchase systems and classic rigging applications.
- Description
- Ask a Question
-
Barton T02210 – Tuphblox Double Bow Block 35mm, Plain Bearing, 2x Ø35mm Sheaves, Max Rope 12mm
The Barton T02210 TUPHblox Double Bow Block features two 35 mm sheaves in a compact and efficient configuration, designed to distribute load evenly and improve mechanical advantage. The bow attachment allows connection via rope or shackle, offering flexibility in installation.
Constructed from Tufnol phenolic resin laminate with cotton reinforcement, this block provides excellent strength, durability, and resistance to environmental conditions. Combined with 316 stainless steel bindings and brass bearings, it ensures smooth, reliable operation under sustained loads in marine and industrial environments.
Key Features
- Double sheave block for efficient load distribution
- Bow attachment for versatile rope or shackle connection
- Tufnol construction – strong, lightweight, and non-conductive
- 316 stainless steel bindings for corrosion resistance
- Brass bearing system for smooth and consistent operation
- Suitable for rope systems and compatible with wire applications
Technical Specifications
Part Number T02210 Block Type Double Bow Series TUPHblox (Tufnol Blocks) Sheave Diameter 2 × 35 mm (1 3/8") Bearing Type Plain Bearing (Brass) Number of Sheaves Double Max Rope Diameter 12 mm (1/2") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Weight 108 g Materials Tufnol (phenolic laminate), 316 stainless steel, brass
Applications
- Compact purchase and control systems
- Classic and heritage yacht rigging
- Load distribution systems with double sheave configuration
- Industrial and non-conductive environments
The Barton TUPHblox range combines traditional materials with modern engineering, delivering reliable strength, smooth operation, and long-term durability in demanding marine and industrial applications.
-
