1360793
$ 20.61
1-2 weeks delivery time
-
+
The Barton N11160 is a Size 1 lightweight cheek block with a 30 mm ball bearing sheave, designed for ropes up to 8 mm. Weighing only 20 g, it delivers low-friction performance with a working load of 355 kg, break load of 710 kg, and a maximum rolling load of 245 kg, making it ideal for dynamic control lines in fixed mounting positions.
- Description
- Ask a Question
-

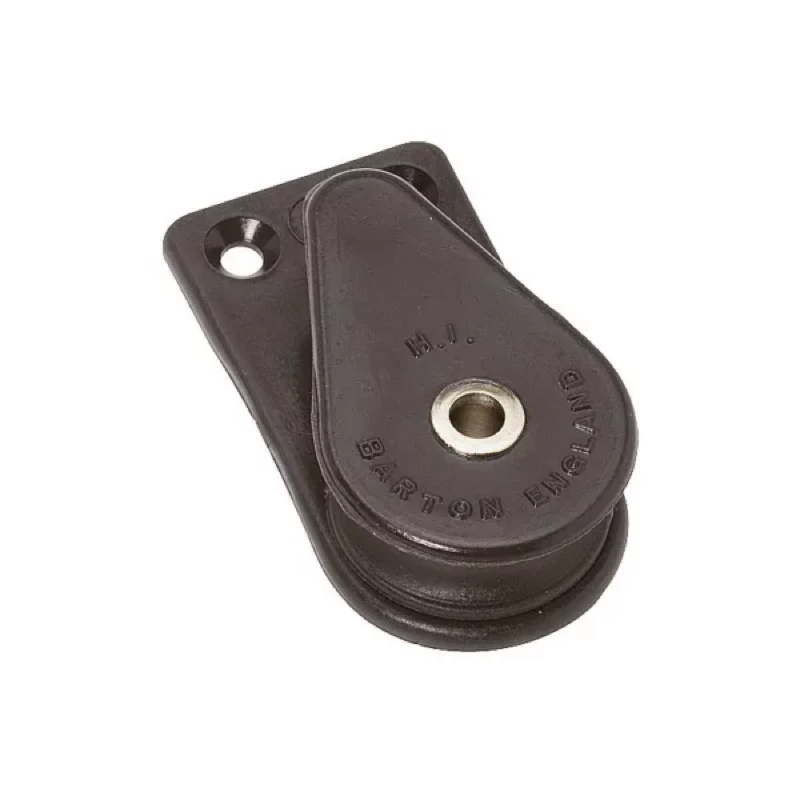

Barton N11160 - Lightweight Cheek Block Size 1 30mm – Ball Bearing, Ø30mm Sheave, Max Rope 8mm
The Barton N11160 Lightweight Cheek Block is part of the Size 1 (30 mm) range, featuring a ball bearing sheave and an internal steel frame for strength and durability despite its ultra-lightweight construction. The cheek block design allows direct mounting onto flat surfaces for efficient line routing.
Designed for fixed-position installations, cheek blocks are commonly mounted on decks, masts, or booms to guide control lines. The ball bearing system ensures low-friction performance for dynamic and frequently adjusted lines, making this block ideal for dinghies, racing boats, and performance sailing applications :contentReference[oaicite:0]{index=0}.
Key Features
- Ultra-lightweight single sheave cheek block
- Ball bearing system for smooth, low-friction operation
- Internal steel frame for strength and durability
- Designed for deck, mast, or boom installation
- Optimized for dynamic control systems
- Minimal weight – 20 g
Technical Specifications
Part Number N11160 Block Type Single Cheek Block Size Size 1 (30 mm) Sheave Diameter 30 mm x 12 mm (1 3/16"" x 15/32"") Bearing Type Ball Bearing Number of Sheaves Single Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 355 kg (782 lbs) Break Load 710 kg (1565 lbs) Max Rolling Load 245 kg (540 lbs) Weight 20 g Dimensions 56 × 30 × 18 mm
Applications
- Fixed-position line routing
- Deck, mast, and boom installations
- Dynamic control and trimming systems
- Dinghies and performance sailing boats
The Barton Size 1 ball bearing lightweight cheek blocks are engineered for maximum efficiency and minimal weight, delivering smooth operation and precise control in compact sailing systems.
-
