ID
1360890
$ 127.64
1-2 weeks delivery time
-
+
The Barton N16130 is a Size 6 single swivel block with a 64 mm ball bearing sheave, designed for ropes up to 14 mm. Weighing 215 g, it delivers smooth low-friction performance with a safe working load of 1000 kg and break load of 2000 kg, making it ideal for dynamic high-load applications requiring continuous adjustment and precise alignment.
- Description
- Ask a Question
-

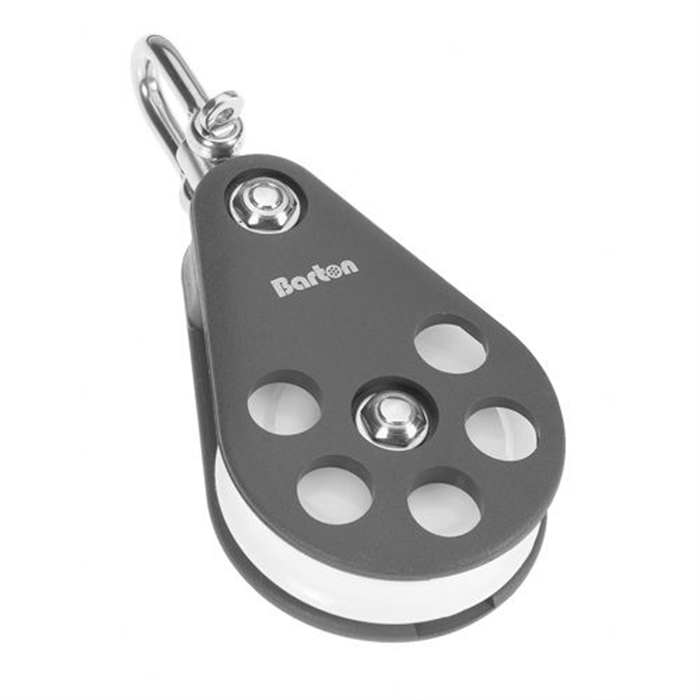

Barton N16130 – Single Swivel Block Size 6 64mm, Ball Bearing, Ø64mm Sheave, Max Rope 14mm
The Barton N16130 Single Swivel Block is part of the heavy-duty Size 6 (64 mm) high load cruiser range, engineered for high-performance sailing applications. Featuring a ball bearing sheave, this block provides smooth, low-friction operation, making it ideal for dynamic systems requiring frequent trimming and adjustment.
The swivel attachment allows full rotation under load, ensuring optimal alignment and reducing line twist in complex rigging setups. Constructed with high-grade injection moulded side plates and marine-grade 316 stainless steel load components, the block is through-bolted and riveted for maximum durability and strength.
Key Features
- Single sheave block with swivel attachment
- Ball bearing system for smooth, low-friction performance
- Full rotation for optimal alignment under load
- Designed for larger cruising and racing yachts
- High-grade injection moulded side plates
- 316 stainless steel internal load components
- Through-bolted and riveted construction for superior strength
- Optimized for dynamic load handling
- Weight – 215 g
Technical Specifications
Part Number N16130 Block Type Single Swivel Size Size 6 (64 mm) Sheave Diameter 64 mm x 18 mm (2 1/2" x 45/64") Bearing Type Ball Bearing Number of Sheaves Single Max Rope Diameter 14 mm (9/16") Safe Working Load (SWL) 1000 kg (2200 lbs) Break Load 2000 kg (4400 lbs) Max Rolling Load 700 kg (1543 lbs) Weight 215 g Dimensions 140 × 67 × 36 mm
Applications
- Dynamic control and trimming systems
- Mainsheet and traveller setups
- Cruising and racing yachts
- Rigging requiring rotation and alignment under load
- Applications with frequent load adjustments
The Barton Size 6 block range is designed as a high load cruiser series for larger yachts, offering reinforced construction, stainless steel load components, and reliable performance under increased loads.
-
