ID
1360892
$ 231.25
1-2 weeks delivery time
-
+
The Barton N16140 is a Size 6 single snap shackle block with a 64 mm ball bearing sheave, designed for ropes up to 14 mm. Weighing 275 g, it delivers smooth low-friction performance with a safe working load of 1000 kg and break load of 2000 kg, making it ideal for dynamic systems requiring quick attachment and efficient load handling.
- Description
- Ask a Question
-

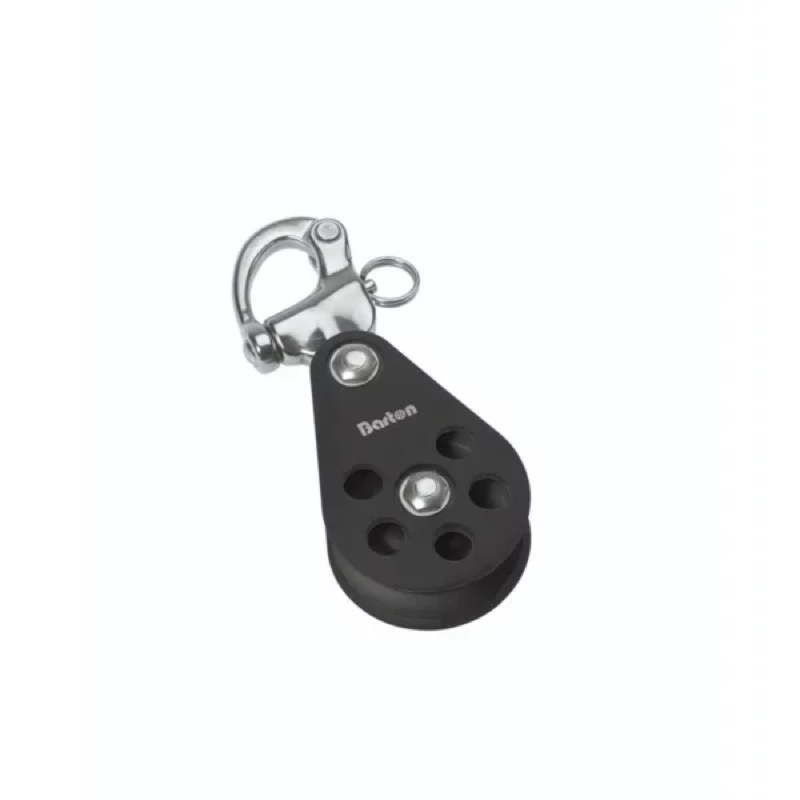

Barton N16140 – Single Snap Shackle Block Size 6 64mm, Ball Bearing, Ø64mm Sheave, Max Rope 14mm
The Barton N16140 Single Snap Shackle Block is part of the heavy-duty Size 6 (64 mm) high load cruiser range, engineered for high-performance sailing applications. Featuring a ball bearing sheave, this block ensures smooth, low-friction operation, ideal for dynamic systems requiring frequent adjustment.
The snap shackle attachment allows fast and secure connection and release, making it ideal for applications where quick handling is essential. Constructed with high-grade injection moulded side plates and marine-grade 316 stainless steel load components, the block is through-bolted and riveted for maximum durability and strength under demanding marine conditions.
Key Features
- Single sheave block with snap shackle attachment
- Ball bearing system for smooth, low-friction performance
- Quick-release snap shackle for fast connection and removal
- Designed for larger cruising and racing yachts
- High-grade injection moulded side plates
- 316 stainless steel internal load components
- Through-bolted and riveted construction for superior strength
- Optimized for dynamic load handling
- Weight – 275 g
Technical Specifications
Part Number N16140 Block Type Single Snap Shackle Size Size 6 (64 mm) Sheave Diameter 64 mm x 18 mm (2 1/2" x 45/64") Bearing Type Ball Bearing Number of Sheaves Single Max Rope Diameter 14 mm (9/16") Safe Working Load (SWL) 1000 kg (2200 lbs) Break Load 2000 kg (4400 lbs) Max Rolling Load 700 kg (1543 lbs) Weight 275 g Dimensions 155 × 67 × 36 mm
Applications
- Dynamic control line systems requiring quick attachment
- Mainsheet and traveller setups
- Cruising and racing yachts
- Temporary or adjustable rigging setups
- Applications requiring fast release under load
The Barton Size 6 block range is designed as a high load cruiser series for larger yachts, offering reinforced construction, stainless steel load components, and reliable performance under increased loads.
-
