ID
1360762
$ 201.84
1-2 weeks delivery time
-
+
The Barton N06170 is a Size 6 single stand-up block with soft plastic spring and a 64 mm plain bearing sheave, designed for ropes up to 14 mm. Weighing 365 g, it is optimized for high-load cruising applications with a safe working load of 1000 kg and break load of 2000 kg, making it ideal for deck-mounted control systems requiring constant upright positioning.
- Description
- Ask a Question
-

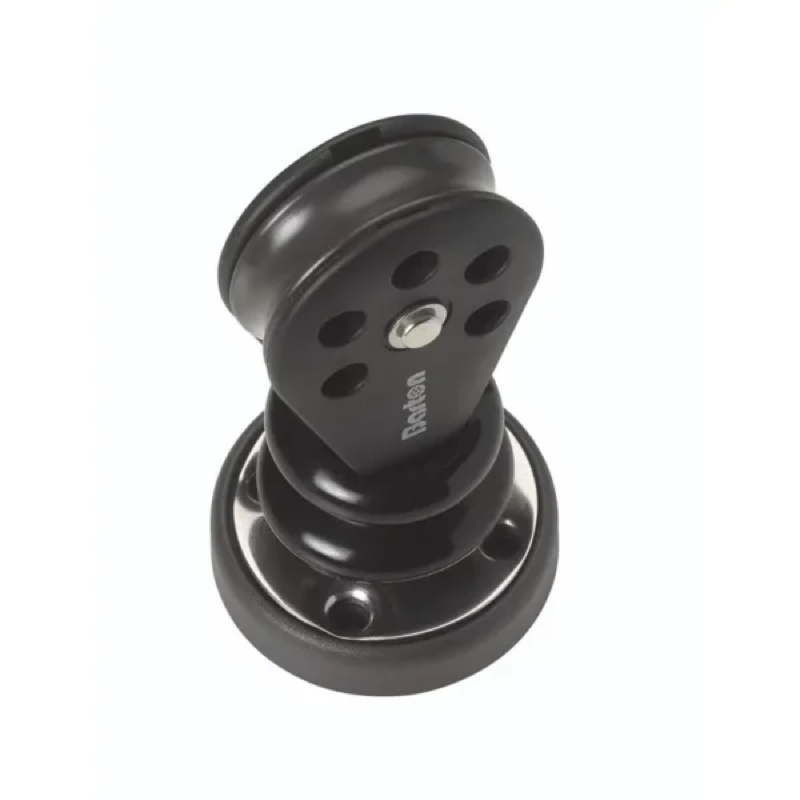

Barton N06170 – Single Stand Up Block with Soft Plastic Spring Size 6 64mm, Plain Bearing, Ø64mm Sheave, Max Rope 14mm
The Barton N06170 Single Stand Up Block with Soft Plastic Spring is part of the heavy-duty Size 6 (64 mm) high load cruiser range, engineered for strength and durability on larger cruising and racing yachts. Featuring a plain bearing sheave, this block is optimized for high static load applications and long-term reliability.
The stand-up base with soft plastic spring keeps the block upright and correctly aligned on deck, ensuring efficient rope handling and reducing friction caused by misalignment. Constructed with high-grade injection moulded side plates and marine-grade 316 stainless steel load components, the block is through-bolted and riveted for maximum strength and durability in demanding marine environments.
Key Features
- Single sheave stand-up block with soft plastic spring base
- Plain bearing system optimized for high-load applications
- Keeps block upright for efficient line handling
- Designed for deck-mounted control systems
- High-grade injection moulded side plates
- 316 stainless steel internal load components
- Through-bolted and riveted construction for superior strength
- Weight – 365 g
Technical Specifications
Part Number N06170 Block Type Single Stand Up Size Size 6 (64 mm) Sheave Diameter 64 mm x 18 mm (2 1/2" x 45/64") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 14 mm (9/16") Safe Working Load (SWL) 1000 kg (2200 lbs) Break Load 2000 kg (4400 lbs) Weight 365 g Dimensions 155 × 68 × 68 mm
Applications
- Deck-mounted control line systems
- Mainsheet and traveller setups
- Cruising and racing yachts
- Rigging requiring consistent block orientation
- Applications with sustained high loads
The Barton Size 6 block range is designed as a high load cruiser series for larger yachts, offering reinforced construction, stainless steel load components, and reliable performance under increased loads.
-
