ID
1360761
$ 213.89
1-2 weeks delivery time
-
+
The Barton N06140 is a Size 6 single snap shackle block with a 64 mm plain bearing sheave, designed for ropes up to 14 mm. Weighing 280 g, it is optimized for high-load cruising applications with a safe working load of 1000 kg and break load of 2000 kg, making it ideal for systems requiring quick attachment and release under load.
- Description
- Ask a Question
-

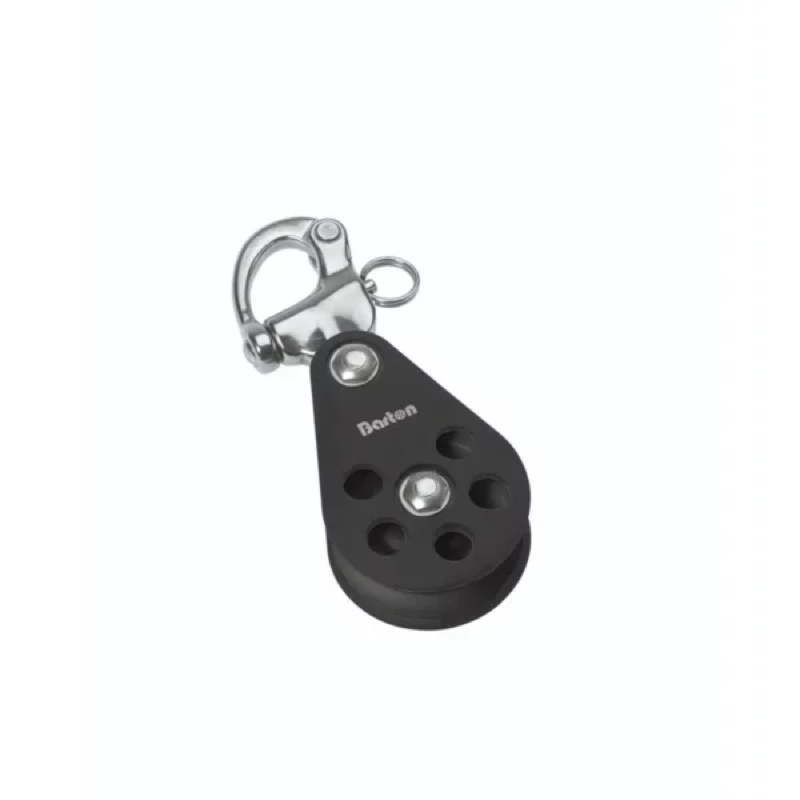

Barton N06140 – Single Snap Shackle Block Size 6 64mm, Plain Bearing, Ø64mm Sheave, Max Rope 14mm
The Barton N06140 Single Snap Shackle Block is part of the heavy-duty Size 6 (64 mm) high load cruiser range, designed for strength and reliability on larger cruising and racing yachts. Featuring a plain bearing sheave, this block is optimized for high static load applications and long-term durability.
The snap shackle attachment allows fast and secure connection and release, making it ideal for applications where quick handling is required. Constructed with high-grade injection moulded side plates and marine-grade 316 stainless steel load components, the block is through-bolted and riveted for maximum strength and reliability in demanding marine environments.
Key Features
- Single sheave block with snap shackle attachment
- Plain bearing system optimized for high-load applications
- Quick-release snap shackle for fast connection and removal
- Designed for larger cruising and racing yachts
- High-grade injection moulded side plates
- 316 stainless steel internal load components
- Through-bolted and riveted construction for superior strength
- Weight – 280 g
Technical Specifications
Part Number N06140 Block Type Single Snap Shackle Size Size 6 (64 mm) Sheave Diameter 64 mm x 18 mm (2 1/2" x 45/64") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 14 mm (9/16") Safe Working Load (SWL) 1000 kg (2200 lbs) Break Load 2000 kg (4400 lbs) Weight 280 g Dimensions 155 × 67 × 36 mm
Applications
- Control line systems requiring quick attachment
- Mainsheet and traveller setups
- Cruising and racing yachts
- Temporary rigging and adjustable setups
- Applications requiring fast release under load
The Barton Size 6 block range is designed as a high load cruiser series for larger yachts, offering reinforced construction, stainless steel load components, and reliable performance under increased loads.
-
