ID
1360876
$ 109.10
1-2 weeks delivery time
-
+
The Barton N15420 is a Size 5 fiddle block with reverse shackle and ball bearing sheaves (38/64 mm), designed for ropes up to 12 mm. Weighing 250 g, it delivers smooth low-friction performance with a safe working load of 750 kg, break load of 1500 kg, and maximum rolling load of 525 kg. The reverse shackle provides a compact connection, making it ideal for dynamic multi-purchase systems on cruising and racing yachts.
- Description
- Ask a Question
-

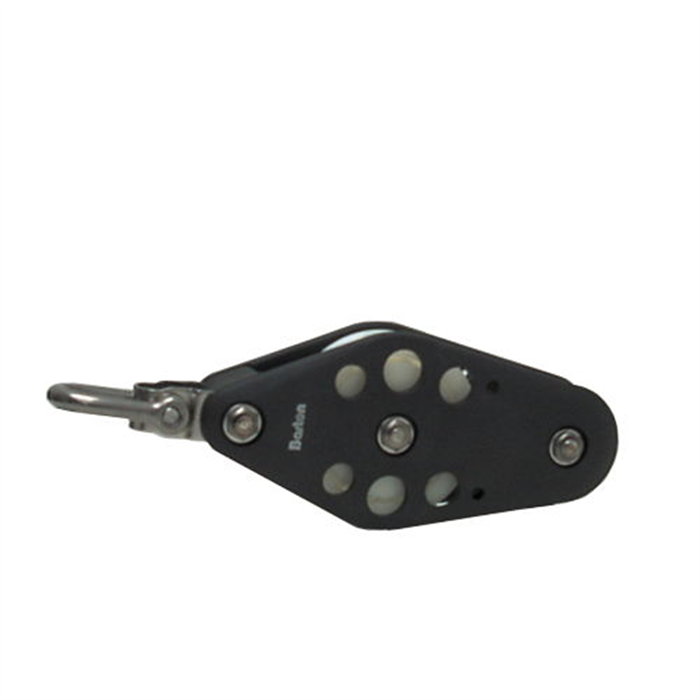

Barton N15420 - Fiddle Block Reverse Shackle Size 5 38/64mm – Ball Bearing, Ø38/64mm Sheaves, Max Rope 12mm
The Barton N15420 Fiddle Block with Reverse Shackle is part of the Size 5 (54 mm) block range, engineered for high efficiency and smooth operation. It features a ball bearing fiddle sheave configuration (38/64 mm), ensuring low friction and precise control in demanding sailing systems.
Constructed with glass fibre reinforced nylon side plates and an internal 316 stainless steel frame, this block provides exceptional durability and strength. The reverse shackle attachment offers a compact and efficient mounting solution, reducing system length and improving performance in multi-purchase rigging setups.
Key Features
- Fiddle block configuration with 38 mm and 64 mm sheaves
- Ball bearing system for smooth, low-friction performance
- Reverse shackle for compact and efficient installation
- Heavy-duty construction with stainless steel internal frame
- Optimized for dynamic and high-load applications
Technical Specifications
Part Number N15420 Block Type Fiddle Reverse Shackle Size Size 5 (54 mm) Sheave Diameter 38 mm / 64 mm Sheave Size 38/64 × 17 mm (1 1/2" / 2 1/2" × 5/8") Bearing Type Ball Bearing Number of Sheaves Fiddle (Double) Max Rope Diameter 12 mm (7/16") Safe Working Load (SWL) 750 kg (1650 lbs) Break Load 1500 kg (3300 lbs) Max Rolling Load 525 kg (1157 lbs) Weight 250 g Dimensions 185 × 67 × 39 mm Materials Glass fibre reinforced nylon cheeks, Acetal sheaves, 316 stainless steel frame
Applications
- Mainsheet and vang systems on larger yachts
- Dynamic multi-purchase systems
- Control and trimming systems
- Cruising and racing yacht rigging
The Barton Size 5 ball bearing fiddle reverse shackle blocks are engineered for maximum efficiency and compact rigging layouts, delivering reliable performance in demanding marine environments.
-
