ID
1360748
$ 83.11
1-2 weeks delivery time
-
+
The Barton N05420 is a Size 5 fiddle block with reverse shackle and plain bearing sheaves (38/64 mm), designed for ropes up to 12 mm. Weighing 273 g, it is engineered for high static loads with a safe working load of 750 kg and break load of 1500 kg. The reverse shackle provides compact and efficient attachment in tight rigging layouts, making it ideal for powerful multi-purchase systems on cruising and racing yachts.
- Description
- Ask a Question
-

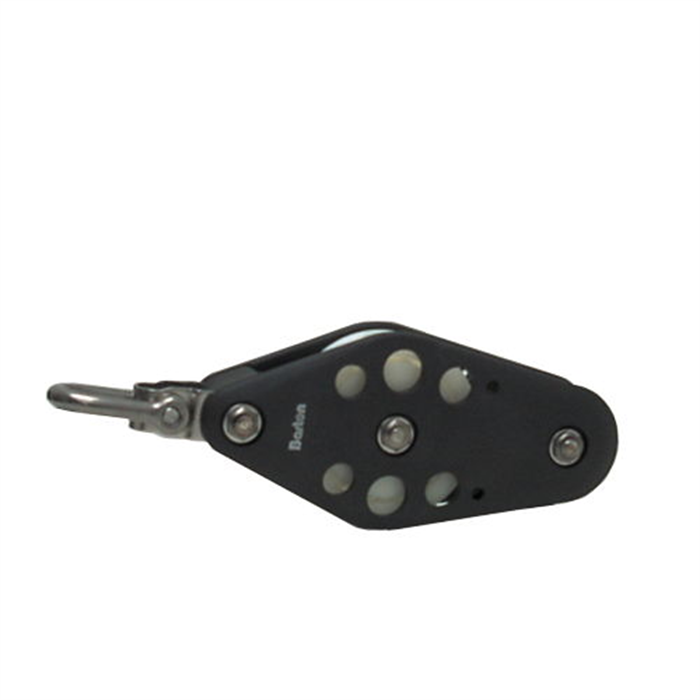

Barton N05420 - Fiddle Block Reverse Shackle Size 5 38/64mm – Plain Bearing, Ø38/64mm Sheaves, Max Rope 12mm
The Barton N05420 Fiddle Block with Reverse Shackle is part of the Size 5 (54 mm) block range, designed for strength, durability, and efficient load handling. It features a plain bearing fiddle sheave configuration (38/64 mm), optimized for higher static load applications.
Constructed with glass fibre reinforced nylon side plates and an internal 316 stainless steel frame, this block ensures exceptional strength and long service life. The reverse shackle attachment provides a compact mounting solution, reducing overall system length and improving efficiency in multi-purchase setups.
Key Features
- Fiddle block configuration with 38 mm and 64 mm sheaves
- Plain bearing sheaves for high load applications
- Reverse shackle for compact and efficient installation
- Heavy-duty construction with stainless steel internal frame
- Optimized for powerful purchase systems
Technical Specifications
Part Number N05420 Block Type Fiddle Reverse Shackle Size Size 5 (54 mm) Sheave Diameter 38 mm / 64 mm Sheave Size 38/64 × 17 mm (1 1/2" / 2 1/2" × 5/8") Bearing Type Plain Bearing Number of Sheaves Fiddle (Double) Max Rope Diameter 12 mm (7/16") Safe Working Load (SWL) 750 kg (1650 lbs) Break Load 1500 kg (3300 lbs) Weight 273 g Dimensions 185 × 67 × 39 mm Materials Glass fibre reinforced nylon cheeks, Acetal sheaves, 316 stainless steel frame
Applications
- Mainsheet and vang systems on larger yachts
- Heavy-duty multi-purchase systems
- Control and trimming systems
- Cruising and racing yacht rigging
The Barton Size 5 fiddle reverse shackle blocks are engineered for efficient load distribution and compact rigging layouts, delivering reliable performance in demanding marine environments.
-
