The Barton N05430 is a Size 5 fiddle block with swivel shackle and plain bearing sheaves (38/64 mm), designed for ropes up to 12 mm. Weighing 292 g, it is optimized for high static loads with a safe working load of 750 kg and break load of 1500 kg. The swivel allows free alignment under load, making it ideal for multi-purchase systems on cruising and racing yachts.
- Description
- Ask a Question
-

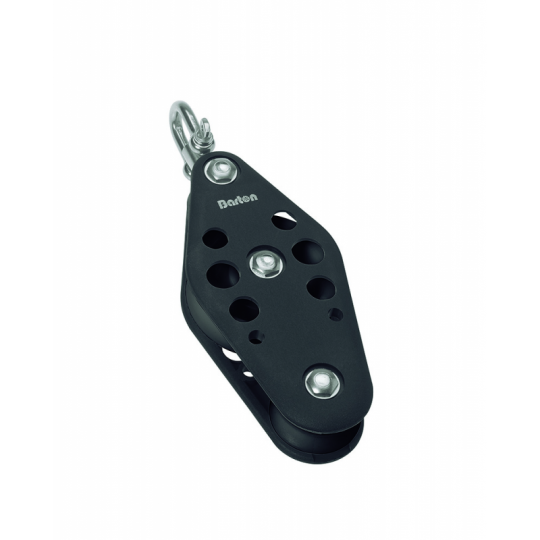

Barton N05430 - Fiddle Block Swivel Size 5 38/64mm – Plain Bearing, Ø38/64mm Sheaves, Max Rope 12mm
The Barton N05430 Fiddle Block with Swivel is part of the Size 5 (54 mm) block range, designed for strength, durability, and efficient load handling. It features a plain bearing fiddle sheave configuration (38/64 mm), optimized for higher static load applications.
Constructed with glass fibre reinforced nylon side plates and an internal 316 stainless steel frame, this block ensures exceptional strength and long service life. The swivel shackle allows free rotation under load for optimal alignment, improving performance in multi-purchase rigging systems.
Key Features
- Fiddle block configuration with 38 mm and 64 mm sheaves
- Plain bearing sheaves for high load applications
- Swivel shackle for flexible alignment and reduced line twist
- Heavy-duty construction with stainless steel internal frame
- Optimized for powerful purchase systems
Technical Specifications
Part Number N05430 Block Type Fiddle Swivel Size Size 5 (54 mm) Sheave Diameter 38 mm / 64 mm Sheave Size 38/64 × 17 mm (1 1/2" / 2 1/2" × 5/8") Bearing Type Plain Bearing Number of Sheaves Fiddle (Double) Max Rope Diameter 12 mm (7/16") Safe Working Load (SWL) 750 kg (1650 lbs) Break Load 1500 kg (3300 lbs) Weight 292 g Dimensions 185 × 67 × 37 mm Materials Glass fibre reinforced nylon cheeks, Acetal sheaves, 316 stainless steel frame
Applications
- Mainsheet and vang systems on larger yachts
- Heavy-duty multi-purchase systems
- Control and trimming systems
- Cruising and racing yacht rigging
The Barton Size 5 fiddle swivel blocks are engineered for efficient load handling and flexible alignment, delivering reliable performance in demanding marine environments.
-
