ID
1360812
$ 74.20
1-2 weeks delivery time
-
+
The Barton N02250 is a Size 2 double upright block with two 35 mm plain bearing sheaves, designed for ropes up to 8 mm. Weighing 109 g, it provides stable deck-mounted performance with a working load of 370 kg and break load of 740 kg, making it ideal for fixed-position control line systems.
- Description
- Ask a Question
-

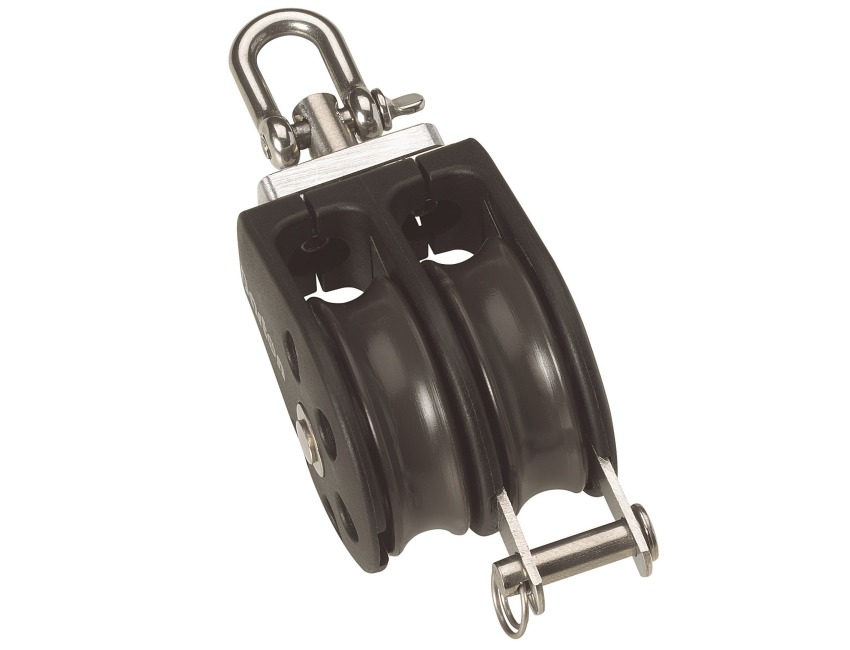

Barton N02250 - Double Upright Block Size 2 35mm – Plain Bearing, 2x Ø35mm Sheaves, Max Rope 8mm
The Barton N02250 Double Upright Block is part of the Size 2 (35 mm) range, featuring two plain bearing sheaves and an internal stainless steel frame for enhanced strength and durability. Designed for fixed mounting, this upright configuration ensures stable and efficient line guidance.
Upright blocks are specifically engineered to be secured to decks, masts, or booms, allowing precise control of line direction from a fixed position. The plain bearing system is optimized for high load capacity and controlled operation, making this block suitable for demanding rigging setups.
Key Features
- Double sheave upright block for fixed mounting
- Designed for deck, mast, or boom installation
- Internal stainless steel frame for increased strength and durability
- Plain bearing system for high load applications
- Stable and efficient line routing from fixed positions
- Robust construction – 109 g
Technical Specifications
Part Number N02250 Block Type Double Upright Size Size 2 (35 mm) Sheave Diameter 2 × 35 mm x 11 mm (1 3/8"" x 15/32"") Bearing Type Plain Bearing Number of Sheaves Double Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Weight 109 g Dimensions 63 × 64 × 50 mm
Applications
- Deck-mounted control line systems
- Mast and boom installations
- Fixed-position line routing
- Dinghies, dayboats, and yachts
The Barton Size 2 upright blocks are engineered for maximum stability, durability, and efficient load handling, ensuring reliable performance in fixed mounting applications.
-
