The Barton N12250 is a Size 2 double upright block with two 35 mm ball bearing sheaves, designed for ropes up to 8 mm. Weighing 108 g, it delivers low-friction performance with a working load of 370 kg, break load of 740 kg, and a maximum rolling load of 260 kg, making it ideal for fixed-position control systems requiring smooth operation.
- Description
- Ask a Question
-

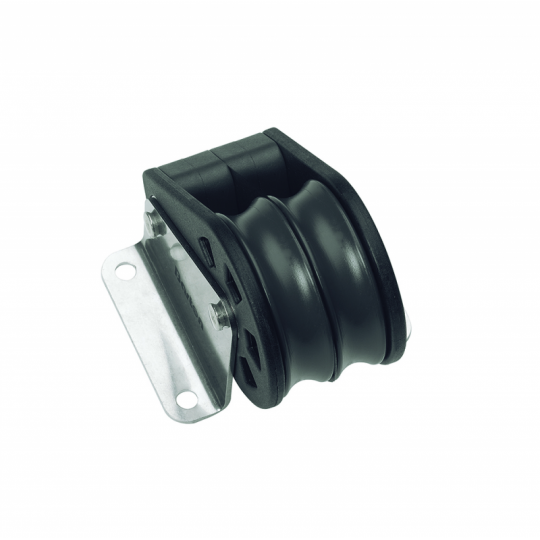

Barton N12250 - Double Upright Block Size 2 35mm – Ball Bearing, 2x Ø35mm Sheaves, Max Rope 8mm
The Barton N12250 Double Upright Block is part of the Size 2 (35 mm) range, featuring two ball bearing sheaves and an internal stainless steel frame for enhanced strength and durability. Designed for fixed mounting, this upright configuration ensures stable positioning and efficient line guidance.
Upright blocks are engineered to be mounted on decks, masts, or booms, providing precise control of line direction from a fixed point. The ball bearing system delivers smooth, low-friction performance, making this block ideal for frequently adjusted and dynamic control lines.
Key Features
- Double sheave upright block for fixed mounting
- Ball bearing system for smooth, low-friction operation
- Designed for deck, mast, or boom installation
- Internal stainless steel frame for increased strength and durability
- Stable and efficient line routing from fixed positions
- Lightweight construction – 108 g
Technical Specifications
Part Number N12250 Block Type Double Upright Size Size 2 (35 mm) Sheave Diameter 2 × 35 mm x 11 mm (1 3/8"" x 15/32"") Bearing Type Ball Bearing Number of Sheaves Double Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Max Rolling Load 260 kg (573 lbs) Weight 108 g Dimensions 63 × 64 × 50 mm
Applications
- Deck-mounted control line systems
- Mast and boom installations
- Fixed-position line routing
- Dinghies, dayboats, and performance yachts
The Barton Size 2 upright ball bearing blocks are engineered for maximum efficiency, durability, and smooth load handling, ensuring reliable performance in demanding marine environments.
-
