The Barton N02330 is a Size 2 triple swivel block with three 35 mm plain bearing sheaves, designed for ropes up to 8 mm. Weighing 108 g, it provides reliable load handling with a working load of 370 kg and break load of 740 kg, making it ideal for multi-purchase systems requiring rotation and efficient load distribution.
- Description
- Ask a Question
-

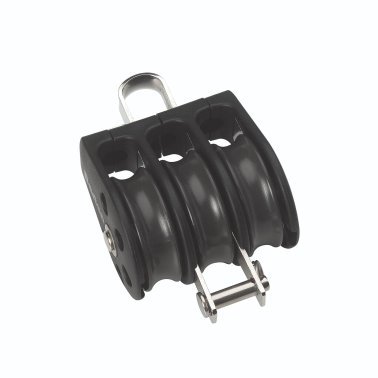

Barton N02330 - Triple Swivel Block Size 2 35mm – Plain Bearing, 3x Ø35mm Sheaves, Max Rope 8mm
The Barton N02330 Triple Swivel Block is part of the Size 2 (35 mm) range, featuring three plain bearing sheaves and an internal stainless steel frame for enhanced strength and durability. The swivel attachment allows free rotation under load, ensuring optimal alignment with changing line directions.
The plain bearing system is optimized for high load capacity and controlled operation, making this block ideal for demanding rigging systems. The triple sheave configuration provides efficient load distribution in multi-purchase setups.
Key Features
- Triple sheave block with swivel attachment
- Allows rotation for optimal line alignment
- Internal stainless steel frame for increased strength and durability
- Plain bearing system for high load applications
- Optimized for multi-purchase systems
- Robust construction – 108 g
Technical Specifications
Part Number N02330 Block Type Triple Swivel Size Size 2 (35 mm) Sheave Diameter 3 × 35 mm x 11 mm (1 3/8"" x 15/32"") Bearing Type Plain Bearing Number of Sheaves Triple Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Weight 108 g Dimensions 74 × 55 × 38 mm
Applications
- Multi-purchase systems with changing lead angles
- Dynamic rigging setups requiring rotation
- Control and trimming lines
- Dinghies, dayboats, and yachts
The Barton Size 2 triple swivel blocks are engineered for strength, flexibility, and efficient load handling, ensuring reliable performance across a wide range of marine applications.
-
