The Barton N12231 is a Size 2 double swivel block with becket and two 35 mm ball bearing sheaves, designed for ropes up to 8 mm. Weighing 98 g, it delivers low-friction performance with a working load of 370 kg, break load of 740 kg, and a maximum rolling load of 260 kg, making it ideal for dynamic multi-purchase systems requiring smooth rotation and efficient line handling.
- Description
- Ask a Question
-

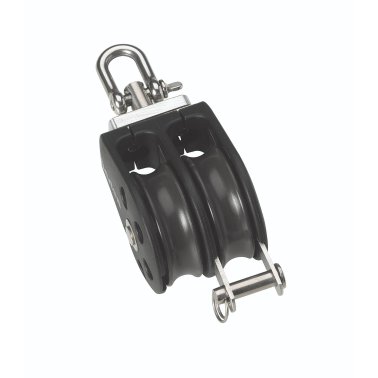

Barton N12231 - Double Swivel Block with Becket Size 2 35mm – Ball Bearing, 2x Ø35mm Sheaves, Max Rope 8mm
The Barton N12231 Double Swivel Block with Becket is part of the Size 2 (35 mm) range, featuring two ball bearing sheaves and an internal stainless steel frame for enhanced strength and durability. The integrated becket allows secure rope termination, making it ideal for compact and efficient purchase systems.
The swivel attachment enables free rotation under load, ensuring optimal alignment with changing lead angles and reducing twisting. The ball bearing system provides smooth, low-friction performance for frequently adjusted and dynamic lines, making this block ideal for performance sailing applications.
Key Features
- Double sheave block with swivel attachment and integrated becket
- Ball bearing system for smooth, low-friction operation
- Allows rotation for optimal line alignment
- Internal stainless steel frame for increased strength and durability
- Optimized for multi-purchase systems with rope termination
- Lightweight construction – 98 g
Technical Specifications
Part Number N12231 Block Type Double Swivel + Becket Size Size 2 (35 mm) Sheave Diameter 2 × 35 mm x 11 mm (1 3/8"" x 15/32"") Bearing Type Ball Bearing Number of Sheaves Double Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Max Rolling Load 260 kg (573 lbs) Weight 98 g Dimensions 100 × 39 × 38 mm
Applications
- Dynamic multi-purchase systems
- Control and trimming lines
- Rigging requiring rotation and flexibility
- Dinghies, dayboats, and performance yachts
The Barton Size 2 ball bearing double swivel blocks with becket are engineered for maximum efficiency, durability, and smooth load handling, ensuring reliable performance in demanding marine environments.
-
