ID
1360810
$ 53.48
1-2 weeks delivery time
-
+

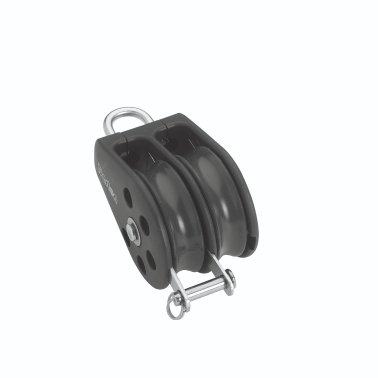

The Barton N02230 is a Size 2 double swivel block with two 35 mm plain bearing sheaves, designed for ropes up to 8 mm. Weighing 87 g, it provides reliable load handling with a working load of 370 kg and break load of 740 kg, making it suitable for versatile rigging systems requiring rotational freedom.
- Description
- Ask a Question
-
Barton N02230 - Double Swivel Block Size 2 35mm – Plain Bearing, 2x Ø35mm Sheaves, Max Rope 8mm
The Barton N02230 Double Swivel Block is part of the Size 2 (35 mm) range, featuring two plain bearing sheaves and an internal stainless steel frame for enhanced strength and durability. The swivel attachment allows the block to rotate under load, ensuring optimal alignment with changing line angles.
The plain bearing system is optimized for high load capacity and controlled line handling, making this block ideal for applications where strength and reliability are critical. The swivel design improves efficiency by reducing twisting and uneven load distribution.
Key Features
- Double sheave block with swivel attachment
- Allows rotation for optimal line alignment
- Internal stainless steel frame for increased strength and durability
- Plain bearing system for high load applications
- Designed for versatile rigging setups
- Robust construction – 87 g
Technical Specifications
Part Number N02230 Block Type Double Swivel Size Size 2 (35 mm) Sheave Diameter 2 × 35 mm x 11 mm (1 3/8"" x 15/32"") Bearing Type Plain Bearing Number of Sheaves Double Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Weight 87 g Dimensions 83 × 39 × 38 mm
Applications
- Dynamic rigging systems requiring rotation
- Control and trimming lines
- Purchase systems with changing lead angles
- Dinghies, dayboats, and yachts
The Barton Size 2 double swivel blocks are engineered for strength, durability, and flexible performance, ensuring reliable operation across a wide range of sailing applications.
-
