ID
1360654
$ 52.54
1-2 weeks delivery time
-
+

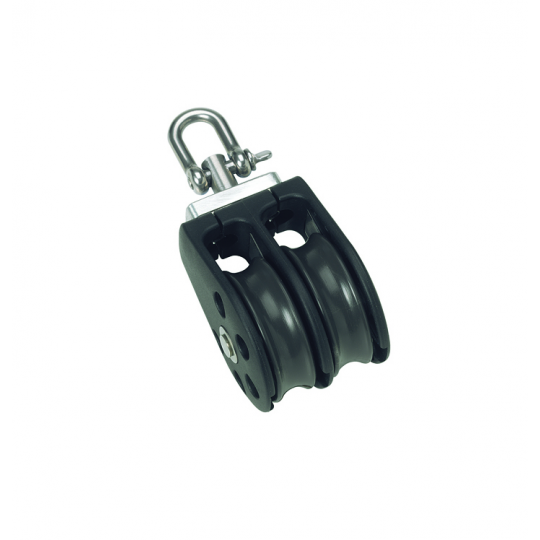

The Barton N01230 is a Size 1 double swivel block with two 30 mm plain bearing sheaves, designed for ropes up to 8 mm. Weighing 80 g, it provides reliable load handling with a working load of 355 kg and break load of 710 kg, making it suitable for compact purchase systems requiring flexible alignment.
- Description
- Ask a Question
-

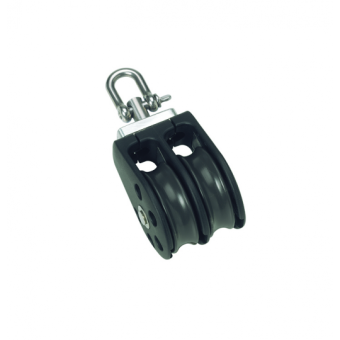

Barton N01230 - Double Swivel Block Size 1 30mm – Plain Bearing, 2x Ø30mm Sheaves, Max Rope 8mm
The Barton N01230 Double Swivel Block is part of the Size 1 (30 mm) range, featuring two plain bearing sheaves and an internal steel frame for enhanced strength and durability. This configuration provides increased mechanical advantage in compact rigging systems.
The swivel attachment allows the block to align automatically with the load direction, reducing line twist and improving efficiency in operation. The plain bearing system is optimized for high load capacity and controlled adjustment, making this block suitable for dinghies, dayboats, and a wide range of sailing applications.
Key Features
- Double sheave block for compact purchase systems
- Swivel attachment for flexible load alignment
- Internal steel frame for increased strength and durability
- Plain bearing system for high load applications
- Robust construction – 80 g
Technical Specifications
Part Number N01230 Block Type Double Swivel Size Size 1 (30 mm) Sheave Diameter 2 × 30 mm x 12 mm (1 3/16"" x 15/32"") Bearing Type Plain Bearing Number of Sheaves Double Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 355 kg (782 lbs) Break Load 710 kg (1565 lbs) Weight 80 g Dimensions 78 × 40 × 32 mm
Applications
- Compact purchase systems
- Control and trimming systems
- Rigging setups requiring flexible alignment
- Dinghies and small to medium sailing boats
The Barton Size 1 plain bearing double swivel blocks are engineered for strength, durability, and versatile performance, providing efficient load handling in a wide range of sailing applications.
-
