The Barton N07420 is a Size 7 fiddle block with reverse shackle, featuring twin inline Ø44 mm and Ø72 mm plain bearing sheaves for ropes up to 14 mm. Weighing 413 g, it is engineered for extreme load applications with a working load of 1250 kg and break load of 2500 kg, making it ideal for heavy-duty systems on larger cruising and racing yachts.
- Description
- Ask a Question
-

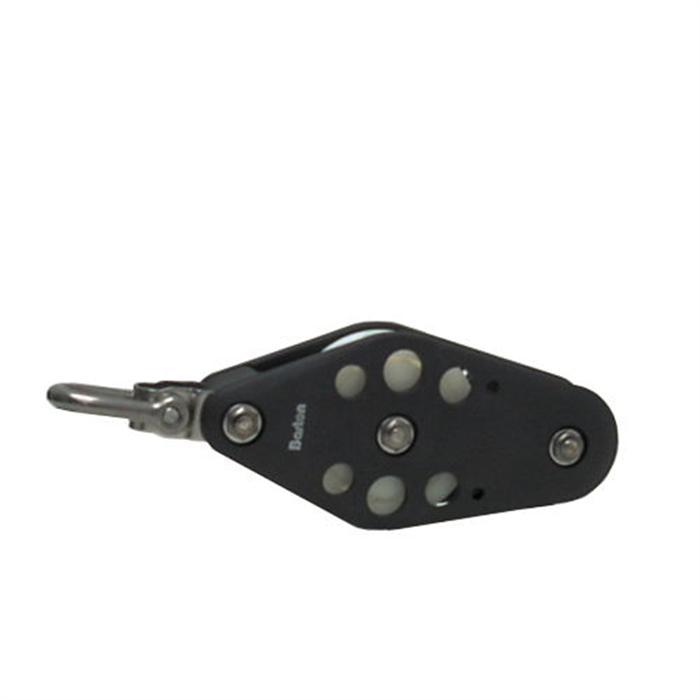

Barton N07420 – Fiddle Block Reverse Shackle Size 7 72mm, Plain Bearing, Ø44/72mm Sheaves, Max Rope 14mm
The Barton N07420 Fiddle Block with Reverse Shackle is part of the Size 7 (70 mm) high load cruising range, designed for maximum strength and performance. It features a fiddle configuration with two inline sheaves (44 mm and 72 mm), delivering an efficient and compact solution for multi-purchase systems under extreme loads.
The plain bearing system ensures superior load capacity and durability in static and high-load applications. The reverse shackle allows flexible 90° mounting orientation, making installation easier in complex rigging setups. Built with glass fibre reinforced side plates and a 316 stainless steel internal frame, this block provides exceptional strength and long service life in demanding marine environments.
Key Features
- Fiddle block with Ø44 mm and Ø72 mm sheaves
- Reverse shackle for flexible mounting orientation
- Plain bearing system for maximum load capacity
- Heavy-duty construction for extreme load applications
- Designed for large cruising and racing yachts
- Robust and durable design – 413 g
Technical Specifications
Part Number N07420 Block Type Fiddle Block – Reverse Shackle Size Size 7 (70 mm) Sheave Configuration Fiddle (2 sheaves) Sheave Diameter 44 mm / 72 mm Sheave Size 72 mm x 20 mm (2 53/64" x 3/4") Bearing Type Plain Bearing Max Rope Diameter 14 mm (9/16") Safe Working Load (SWL) 1250 kg (2750 lbs) Break Load 2500 kg (5500 lbs) Weight 413 g Dimensions 220 × 77 × 50 mm
Applications
- Mainsheet and vang systems
- Extreme load purchase systems
- Rigging requiring flexible mounting orientation
- Large cruising and racing yachts
The Barton Size 7 plain bearing fiddle blocks are engineered for maximum strength and reliability, ensuring dependable performance in the most demanding high-load sailing systems.
-
